Product Description

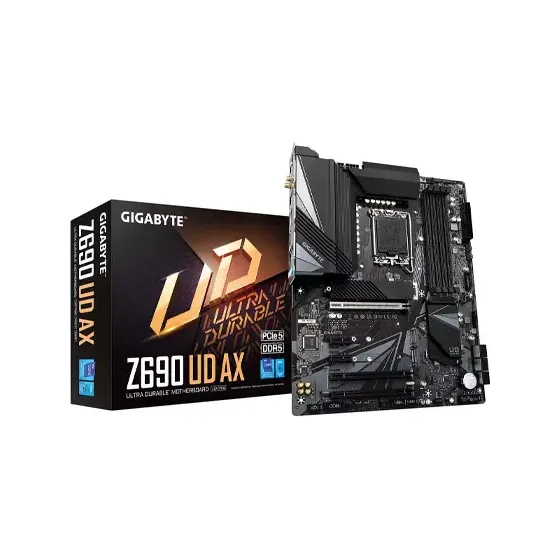

GIGABYTE Z690 UD AX DDR5 LGA 1700 Intel ATX Motherboard
Unlock unparalleled performance and expand your creative horizons with the GIGABYTE Z690 UD AX DDR5 LGA 1700 Intel ATX Motherboard, designed for serious enthusiasts and content creators seeking the ultimate PC experience. Engineered to deliver exceptional power, speed, and stability, this motherboard is the perfect foundation for building a high-end gaming PC or a professional workstation.
Key Features and Benefits
Technical Highlights:
- Supports 12th Generation Intel Core i9, i7, and i5 processors for exceptional performance and power efficiency
- DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing for optimal memory performance
- Advanced Thermal Solution with Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate for reduced temperatures and increased stability
- Fast 2.5GbE LAN with Bandwidth Management and Intel WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna for seamless connectivity
- 3 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards for exceptional storage performance
Advanced Technologies and Innovations
Exclusive GIGABYTE Technologies:
The GIGABYTE Z690 UD AX motherboard features a range of cutting-edge technologies designed to enhance performance, cooling, and aesthetics. The DDR5 XTREME MEMORY Design optimizes memory performance, while the Fins-Array III Heatsink and Direct-Touch Heatpipe II work together to reduce temperatures and increase stability. The motherboard also boasts a range of advanced features, including RGB FUSION 2.0, Smart Fan 6, and AQUANTIA 10GbE LAN.
Part ID: #CAN-01687
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
Gigabyte Z690 UD AX DDR5 12th Gen ATX Motherboard
|
In Stock | 27,200 | 4 hours ago | |
|
Computer Village
GIGABYTE Z690 UD AX DDR5 ATX Motherboard
|
In Stock | 28,000 | 5 hours ago | |
|
Creatus Computer
GIGABYTE Z690 UD AX DDR5 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
TechLand BD
GIGABYTE Z690 UD AX DDR5 LGA 1700 Intel ATX Motherboard
|
Check Stock | 28,000 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots
Memory
Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel Z690 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Warranty
3 Years
Dimension
30.5cm x 24.4cm
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Form Factor
ATX
Supported CPU
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
External I/O Ports
1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
