Product Description

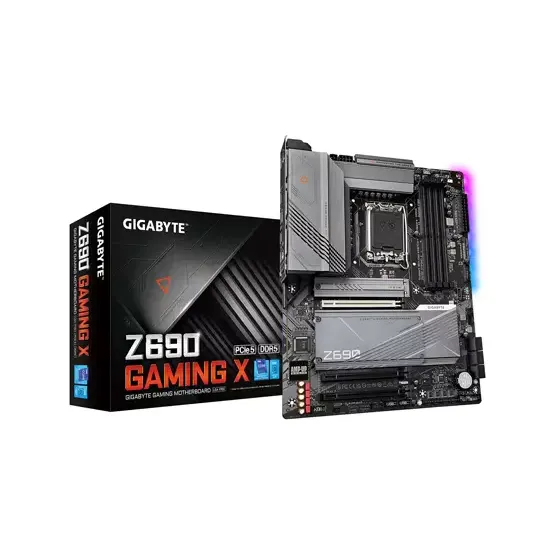

Gigabyte Z690 Gaming X DDR5 Motherboard: Unleash Unmatched Performance
Designed for the most demanding gamers and overclockers, the GIGABYTE Z690 Gaming X DDR5 motherboard offers unparalleled performance and customization options for Intel Core processors. With its robust feature set and sleek design, this motherboard is the perfect foundation for building a next-generation gaming PC.
Main Highlights
Key Features:
- Ampere 16+2 Phases Digital Power Design for stable and efficient power delivery
- Support for up to DDR5 6400 (OC) memory and high-speed storage options
- Integrated Wi-Fi 6 and high-quality audio capacitors for seamless connectivity and immersive sound
- Quad-GPU support and multiple PCIe x16 slots for multi-GPU configurations
- High-quality capacitors and robust power delivery for improved overclocking headroom
Exclusive Technologies
Enhanced Cooling and Performance
The GIGABYTE Z690 Gaming X DDR5 motherboard incorporates several cutting-edge technologies to enhance performance and cooling. With our proprietary features, you can expect improved system stability, reduced noise levels, and enhanced overall system performance. Our motherboard is designed to deliver the best possible gaming experience, with features like:
Ampere 16+2 Phases Digital Power Design
High-quality capacitors and robust power delivery
AI Cooling Engine with advanced thermal sensors
These proprietary technologies work together to create a motherboard that's optimized for performance, cooling, and customization.
Part ID: #CAN-01707
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Gigabyte Z690 GAMING X DDR5 12th Gen ATX Motherboard
|
Check Stock | 25,300 | 5 hours ago | |
|
Nexus Computer
Gigabyte Z690 GAMING X DDR5 12th Gen ATX Motherboard
|
Check Stock | 25,500 | 4 hours ago | |
|
TechLand BD
GIGABYTE Z690 GAMING X DDR5 LGA 1700 Intel ATX Motherboard
|
Check Stock | 25,800 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Audio
Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory
Memory Frequency(ies) DDR5 4000 MHz DDR5 4800 MHz DDR5 5200 MHz DDR5 5400 MHz DDR5 5600 MHz DDR5 5800 MHz DDR5 6000 MHz Memory type DDR5 Memory technology Dual Channel Maximum RAM capacity per slot 32 GB Maximum RAM capacity 128 GB
Chipset
Intel Z690 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Warranty
3 Years
Dimension
30.5cm x 24.4cm
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Form Factor
ATX
Supported CPU
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
External I/O Ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Part ID: #CAN-01707
Last Updated: 1 month ago
