Status
In Stock
5 listings tracked
Lowest Deal
25,300
Best Deal
Price Range
25,300 to 25,500
Save 1%
Product Description

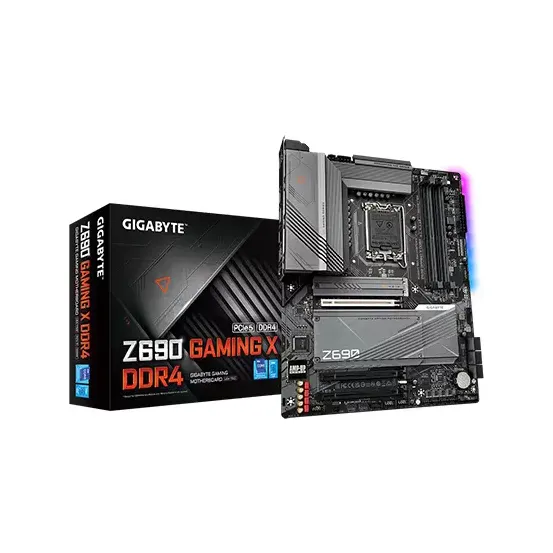

Engineered by Gigabyte, this motherboard is built on the **Z690** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **25,300 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01682
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard
|
In Stock | 25,300 | 2 hours ago | |
|
Computer Village
GIGABYTE Z690 GAMING X DDR4 ATX Intel 12th Gen Motherboard
|
In Stock | 25,500 | 3 hours ago | |
|
Creatus Computer
Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 3 hours ago | |
|
TechLand BD
GIGABYTE Z690 GAMING X DDR4 ATX 12TH GEN INTEL MOTHERBOARD
|
Check Stock | 25,500 | 3 hours ago | |
|
PC House
Gigabyte Z690 GAMING X 12th Gen ATX Motherboard
|
Check Stock | 27,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
Audio
Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel Z690 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Warranty
3 years
Dimension
30.5cm x 24.4cm
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Form Factor
ATX Form Factor
Supported CPU
LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
External I/O Ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Part ID: #CAN-01682
Last Updated: 2 days ago
Gigabyte Z690 GAMING X 12th Gen ATX MotherboardGigabyte Z690 GAMING X Motherboard Supports 12th Gen Intel Core Series Processors. This Motherboard featured with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor, Shielded Memory Routing to Avoid Interference. This Gigabyte Z690 GAMING X Motherboard is fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It has AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management, 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards, SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.The Gigabyte Z690 GAMING X 12th Gen ATX Motherboard is a great choice for your gaming setup and it is the best price in Bangladesh. You can order motherboards at the lowest prices on our website PC House or visit our showroom. We are always ready to deliver the best products at any location in Bangladesh.Features:Supports 12th Gen Intel® Core™ Series ProcessorsDual Channel Non-ECC Unbuffered DDR4, 4 DIMMsDirect 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer CapacitorShielded Memory Routing to Avoid InterferenceFully Covered Thermal Design with High Coverage MOSFET HeatsinksAMP-UP Audio with ALC1220 and WIMA Audio CapacitorsFast 2.5GbE LAN with Bandwidth Management4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal GuardsSuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speedsRGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED StripsSmart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics CSee More Motherboard
