Product Description

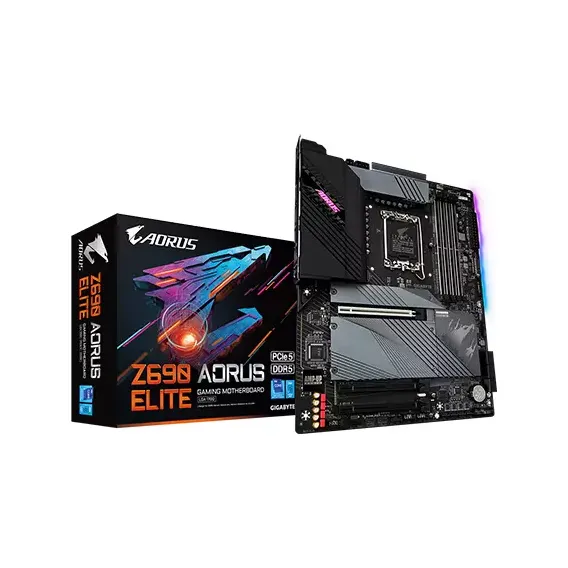

Gigabyte Z690 AORUS ELITE 12th Gen DDR5 Memory Motherboard
Unlock your gaming potential with the Gigabyte Z690 AORUS ELITE 12th Gen DDR5 memory motherboard, designed for enthusiasts and gamers who demand the best performance and features. This high-end motherboard offers an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming.
Key Features and Performance Benefits:
- Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
- Latest DDR5 architecture with XMP 3.0 capability, bringing 50% more bandwidth to the platform
- Up to 128 GB (32 GB single DIMM capacity) of system memory support, with dual channel memory architecture
- Realtek 2.5GbE LAN chip for fast and reliable networking
- Support for HDMI 2.1 version and HDCP 2.3, with integrated Intel HD Graphics processor
Proprietary Technologies and Innovations:
The Gigabyte Z690 AORUS ELITE motherboard features several proprietary technologies and innovations that enhance performance and user experience. These include the new DDR5 memory technology, with Unlocked Native DDR5 Voltage, Xtreme Memory Routing, and a reliable SMD slot. The motherboard also features a user-friendly UI with full functionality to overclock higher with exclusive DDR5 tuning capability.
Part ID: #CAN-01688
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1. 1 x 256 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 2. Support for HDMI 2.1 version and HDCP 2.3. 3. Support native HDMI 2.1 TMDS compatible ports
Audio
1. Realtek® ALC1220-VB CODEC The back panel line out jack supports DSD audio. 2. High Definition Audio 3. 2-channel analog output 4. Support for S/PDIF Out 5. 7.1-channel digital signals
Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory
1. Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel® Z690 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Warranty
3 years
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
Supported CPU
1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors 2. L3 cache varies with CPU
Other Features
Back Panel Connectors: 1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2. 2 x USB 3.2 Gen 2 Type-A ports (red) 3. 3 x USB 3.2 Gen 1 ports 4. 4 x USB 2.0/1.1 ports 5. 2 x SMA antenna connectors (2T2R) 6. 1 x HDMI port 7. 1 x DisplayPort 8. 1 x RJ-45 port 9. 1 x optical S/PDIF Out connector 10. 2 x audio jacks
Supported Storage
CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 3. 6 x SATA 6Gb/s connectors
Internal I/O Ports
1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x 4-pin ATX 12V power connector 4. 1 x CPU fan header 5. 1 x water cooling CPU fan header 6. 3 x system fan headers 7. 1 x system fan/water cooling pump heade 8. 2 x addressable LED strip headers 9. 2 x RGB LED strip headers 10. 4 x M.2 Socket 3 connectors 11. 6 x SATA 6Gb/s connectors 12. 1 x front panel header 13. 1 x front panel audio header 14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 15. 1 x USB 3.2 Gen 1 header 16. 2 x USB 2.0/1.1 headers 17. 2 x Thunderbolt™ add-in card connectors 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 19. 1 x reset button 20. 1 x Q-Flash Plus button 21. 1 x reset jumper 22. 1 x Clear CMOS jumper
