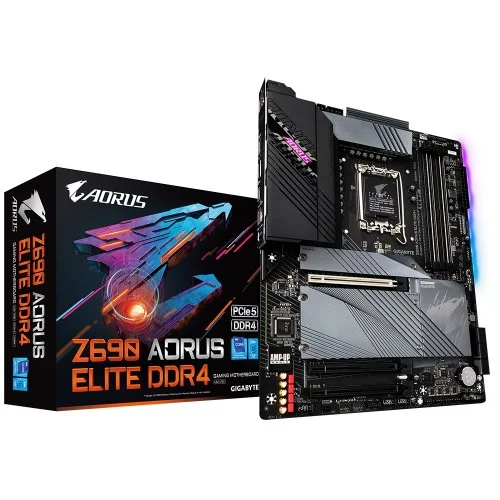

GIGABYTE Z690 AORUS ELITE DDR4 12th Gen ATX Motherboard

Status
In Stock
2 stores
Lowest 27,450 BDT
Price Range Single price listing
GIGABYTE Z690 AORUS ELITE DDR4 12th Gen ATX Motherboard

Product Description

GIGABYTE Z690 AORUS ELITE DDR4 12th Gen ATX Motherboard

This motherboard is designed for serious gamers and PC enthusiasts seeking to unleash the full potential of their 12th Gen Intel Core Series Processors. Built with cutting-edge technology and robust power delivery, the GIGABYTE Z690 AORUS ELITE DDR4 is the ultimate platform for gaming, content creation, and other high-performance computing applications.

Key Features and Benefits

Technical Highlights:

  • Supports 12th Gen Intel Core, Pentium Gold, and Celeron Processors
  • Quad Channel DDR4 memory support, up to 128 GB capacity
  • Realtek ALC1220-VB CODEC with DSD audio and high-definition audio
  • 2.5GbE LAN with bandwidth management and 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C with up to 20Gb/s transfer speeds

Proprietary Technologies and Performance Enhancements

AORUS Exclusive Features:

The GIGABYTE Z690 AORUS ELITE DDR4 boasts a range of innovative technologies designed to enhance performance, cooling, and overall user experience. These include:

Direct 16+1+2 Digital VRM Design with 70A Power Stage

DDR4 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing

Fully Covered Thermal Design with High Coverage MOSFET Heatsinks

AMP-UP Audio with ALC1220 and WIMA Audio Capacitors

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design

Experience the ultimate in performance, reliability, and aesthetics with the GIGABYTE Z690 AORUS ELITE DDR4 motherboard.

Part ID: #CAN-02048 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Nexus Computer Gigabyte Z690 AORUS ELITE DDR4 12th Gen ATX Motherboard
In Stock 27,450 4 hours ago
Buy Now
Creatus Computer GIGABYTE Z690 AORUS ELITE DDR4 12th Gen ATX Motherboard
Check Stock Call for Price 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel Z690 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)

Memory

Type DDR4
Slots 4 x DDR DIMM sockets
Supported Memory Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.)/ 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128 GB

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility

Warranty Information

Manufacturing Warranty 3 years
