Product Description

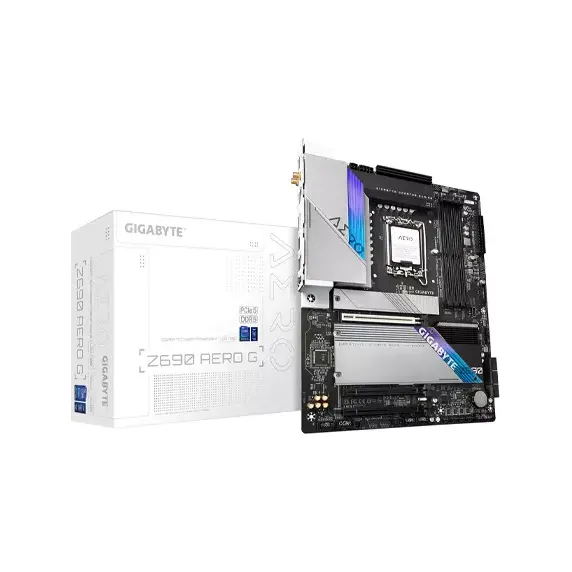

Unleash Your Creativity with the Gigabyte Z690 Aero G Creator Motherboard
The Gigabyte Z690 Aero G Creator Motherboard is designed for content creators, professionals, and enthusiasts who demand high-performance computing, impressive connectivity, and expandable graphics. With the latest Intel 12th Gen platform and DDR5 memory support, this motherboard delivers reliable computing performance and ultra-fast storage for heavy design workloads like 3D rendering, video production, and more.
Key Features and Benefits
- Support for the latest Intel 12th Gen processors and DDR5 memory
- VisionLINK technology for seamless data transfer, video output, and power charging through a single USB Type-C cable
- Onboard WIFI 6 technology with Bluetooth module for gigabit wireless performance and reduced congestion
- Intel 2.5 GbE network connectivity for speeds up to 2.5 times faster than gigabit Ethernet
- Quad PCIe 4.0 M.2 sockets for superior bandwidth and storage capacity
Advanced Thermal Solutions and Proprietary Technologies
The Gigabyte Z690 Aero G Creator Motherboard features numerous hybrid fan headers and temperature sensors, allowing for real-time monitoring and configuration of fan modes to fit different workloads via Smart Fan 6. Additionally, the motherboard boasts a large heat sink design and Direct-Touch Heatpipe II, ensuring stability during creative sessions. GIGABYTE's Advanced Thermal Solutions provide a perfect balance of aesthetics and performance, making it an ideal choice for demanding applications.
Part ID: #CAN-01665
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
Gigabyte Z690 Aero G DDR5 12th Gen ATX Motherboard
|
In Stock | 33,500 | 4 hours ago | |
|
TechLand BD
GIGABYTE Z690 AERO G DDR5 12TH GEN ATX INTEL MOTHERBOARD
|
Check Stock | 33,600 | 5 hours ago | |
|
PC House
Gigabyte Z690 Aero G DDR5 12th Gen ATX Motherboard
|
Check Stock | 33,750 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
WiFi
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Audio
1 x front panel audio header
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory
Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel Z690 Express Chipset
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3
Warranty
3 years
Dimension
30.5cm x 24.4cm
Multi-GPU
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Form Factor
ATX Form Factor
Supported CPU
LGA1700 socket: Support for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
External I/O Ports
2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
