Product Description

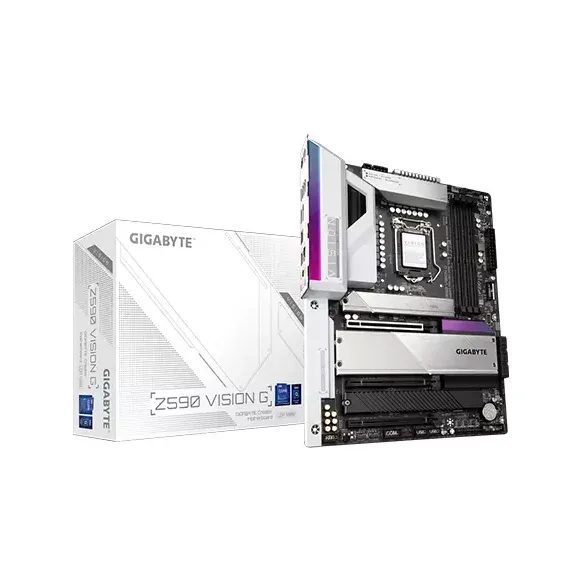

Gigabyte Z590 VISION G Motherboard
Unlock the full potential of your 11th Gen Intel Core processor with the Gigabyte Z590 VISION G motherboard, designed for enthusiasts and power users seeking unparalleled performance and features. This premium motherboard offers a unique blend of cutting-edge technology, exceptional cooling, and seamless integration with your system.
Key Features and Benefits
Technical Specifications:
- Support for 11th Gen Intel Core processors (LGA 1200)
- ATX form factor with 30.5 cm x 24.4 cm dimensions
- Quad Channel DDR4 memory support up to 128 GB
- High-quality 10+2 Phases Digital Power Design for improved stability
- Wi-Fi 6 (802.11ax) and Gigabit LAN for fast networking
Advanced Technologies and Features
Groundbreaking Technologies:
The Z590 VISION G motherboard boasts several innovative features that set it apart from the competition. With its cutting-edge design and premium components, this motherboard is engineered to deliver exceptional performance, reliability, and ease of use.
Part ID: #CAN-01747
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
Gigabyte Z590 VISION G Intel 10th and 11th Gen ATX Motherboard
|
In Stock | 26,000 | 5 hours ago | |
|
Nexus Computer
Gigabyte Z590 VISION G DDR4 11th Gen Intel LGA1200 Socket Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
Gigabyte Z590 VISION G LGA 1200 11th Gen Intel Atx Motherboard
|
Check Stock | 26,000 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit
USB
Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Memory
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel Z590 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Warranty
03 Years
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Supported CPU
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors
External I/O Ports
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen2 Type-A ports 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 6 x audio jacks
Internal I/O Ports
x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 1 x noise detection header
