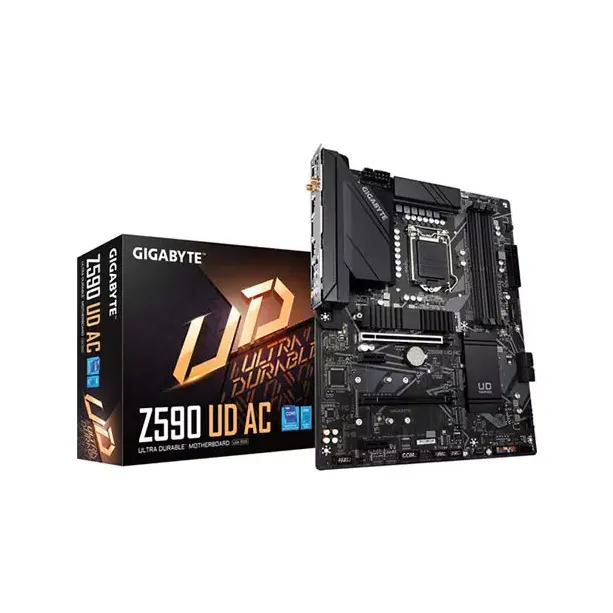

Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard Gigabyte Z590 UD AC ATX Motherboard Supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It has Direct 12+1 Phases Digital VRM Solution with 50A DrMOS and Shielded Memory Routing for Better Memory Overclocking. It comes with Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact and Fast 2.5GbE LAN with Bandwidth Management. It has Onboard Intel 802.11ac Wireless & BT with High-Gain Antenna. It also has Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard and USB 3.2 Gen2 and Front USB Type-C for Fast and Versatile Connections. Pre-installed IO Shield for Easy and Quick Installation makes it easy to use. The RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, and support Addressable LED & RGB LED Strips. Smart Fan comes with 6 Features Multiple Temperature Sensors, and Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 years warranty. Specification: Basic Information Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors Chipset Intel Z590 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor ATX Form Factor; 30.5cm x 24.4cm Audio Realtek audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) Memory Type Dual-channel memory architecture Slots 4 x DDR4 DIMM Supported Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Mamory 128 GB (32 GB single DIMM capacity) Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Connector & Ports Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 USB (s) Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 5 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel Optane Memory Ready Audio 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 5 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB Type-C header, with USB 3.2 Gen 1 support 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper Warranty Information Manufacturing Warranty 3 years Others Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install  ..
