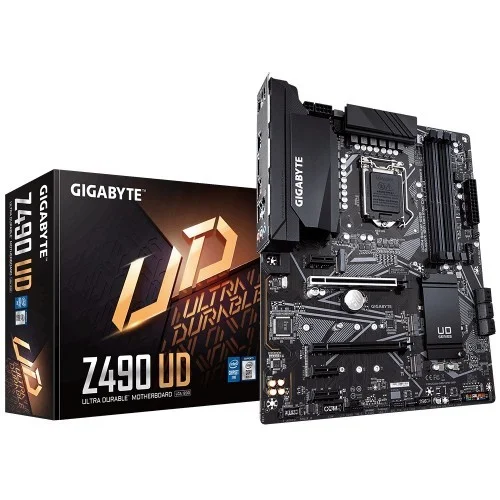

GIGABYTE UD series motherboards use an 11+1 phase digital PWM + Low RDS(on) MOSFETs design to support the latest 10-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. We are offering a tested and proven platform that ensures proper compatibility with profiles up to 4500MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. For most prosumers and gamers, high bandwidth storage and high-performance graphics card are critical for their applications. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0-grade hardware design. Specification: Basic Information Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package Chipset Intel Z490 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor ATX Form Factor; 30.5cm x 24.4cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB) Memory Type Dual channel memory architecture Slots 4 x DDR4 DIMM Supported Memory Intel Core i9/i7 processors: Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel Core i5/ i3/ Pentium/ Celeron processors: DDR4 2666/ 2400/ 2133 MHz memory modules ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules Maximum Mamory 128 GB Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Max Shared Memory 512MB Connector & Ports HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz USB (s) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Internal I/O Ports 1 x 24-pin ATX main power connector 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors front panel header 1 x front panel audio header 1 x S/PDIF Out header USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper Warranty Information Manufacturing Warranty 03 Years Others Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Information Viewer Q-Flash Plus Q-Flash Xpress Install  ..
