Product Description

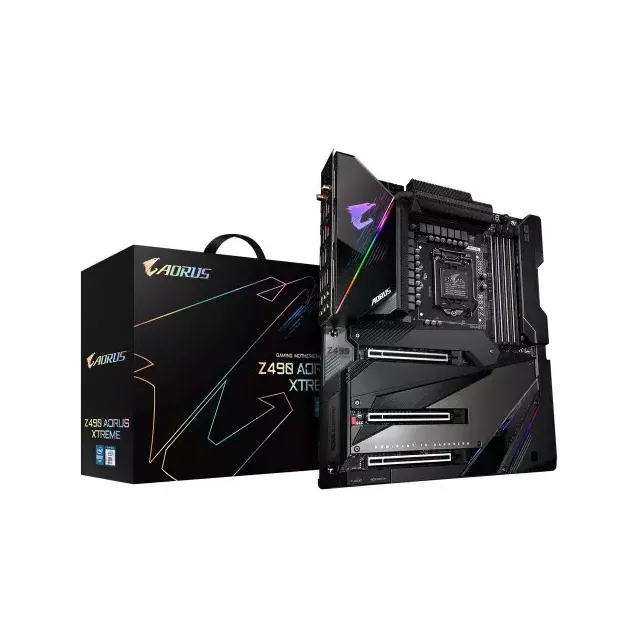

Gigabyte Z490 AORUS XTREME Motherboard Overview
The Gigabyte Z490 AORUS XTREME motherboard is designed for enthusiasts seeking to unleash the full potential of their 10th Gen Intel Core processors. With its cutting-edge features, premium build quality, and exceptional performance, this motherboard is the perfect choice for those who demand the best.
Key Features and Benefits
- Supports 10th Gen Intel Core processors with up to 10 cores
- Dual Channel Non-ECC Unbuffered DDR4 memory with 4 DIMMs
- Intel Optane Memory Ready for enhanced performance and responsiveness
- 16+1 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
- Intel Thunderbolt 3 Onboard for ultra-fast data transfer and display connectivity
- AQUANTIA 10GbE BASE-T LAN and Intel 2.5GbE LAN for lightning-fast networking
Exclusive Technologies and Features
The Gigabyte Z490 AORUS XTREME motherboard boasts a range of innovative technologies and features that set it apart from the competition. Some of the key highlights include:
Xtreme Memory with SMT DIMM and Shielded Memory Routing for improved memory performance and stability.
Thermal Reactive Armor with Fins-Array II Heatsink, Direct Touch Heatpipe II, and NanoCarbon Baseplate for exceptional cooling and heat dissipation.
AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720, and OPA1622 OP-AMP for Hi-Fi level audio quality.
RGB Fusion 2.0 with Multi-Zone Addressable LED Light Show Design for customizable lighting and aesthetics.
Q-Flash Plus for easy BIOS updates without installing the CPU, memory, and graphics card.
Part ID: #CAN-01571
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
Gigabyte Z490 AORUS XTREME intel 10th Gen MOTHERBOARD
|
In Stock | 80,900 | 5 hours ago | |
|
PC House
GIGABYTE Z490 AORUS XTREME INTEL 10TH GEN MOTHERBOARD
|
In Stock | 80,900 | 4 hours ago | |
|
Nexus Computer
Gigabyte Z490 Aorus Xtreme Waterforce Lga 1200 Intel Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 packageL3 cache varies with CPU
LAN
1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit//1 Gbit/100 Mbit) (LAN1)1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
USB
Chipset+Intel® Thunderbolt™ 3 Controller:2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 supportChipset:1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header4 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
BIOS
2 x 256 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® ALC1220-VB codec+ESS ES9218P DAC (front panel audio)Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)Support for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
Memory
Intel® Core™ i9/i7 processors:Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHzIntel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Chipset
Intel® Z490 Express Chipset
Form Factor
E-ATX Form Factor; 30.5cm x 27.1cm
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
I/O Controller
iTE® I/O Controller Chip
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostRGB FusionSmart BackupSystem Information ViewerUSB TurboChargerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)cFosSpeedXSplit Gamecaster + Broadcaster (12 months license)
Onboard Graphics
Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.
Operating System
Support for Windows 10 64-bit
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.Intel® Optane™ Memory Ready
Back Panel Connectors
1 x Q-Flash Plus button1 x Clear CMOS button2 x SMA antenna connectors (2T2R)2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)4 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x HDMI port2 x RJ-45 ports1 x optical S/PDIF Out connector5 x audio jacks
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers6 x SATA 6Gb/s connectors3 x M.2 Socket 3 connectors1 x noise detection header1 x front panel header1 x front panel audio header1 x USB Type-C™ header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header2 x temperature sensor headers1 x power button1 x reset button1 x OC button2 x BIOS switchesVoltage Measurement Points
Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologiesSupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Wireless Communication module
Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.1Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.
