Product Description

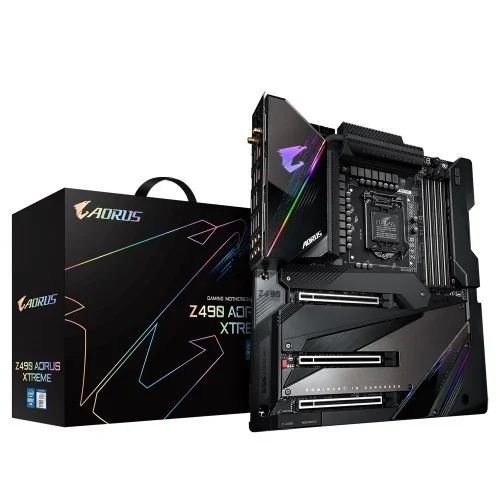

Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard
This powerhouse motherboard is designed for enthusiasts and professionals who demand the best performance, features, and connectivity. With its cutting-edge design and innovative technologies, the Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard unleashes the full potential of your 10th Gen Intel Core processor, delivering unparalleled performance, stability, and versatility.
Key Features and Benefits
- Supports 10th Generation Intel Core i9 processors, Intel Core i7 processors, Intel Core i5 processors, Intel Core i3 processors, Intel Pentium processors, and Intel Celeron processors in the LGA1200 package
- Quad-GPU SLI and 2-Way NVIDIA SLI technologies supported
- Quad-GPU CrossFire and 2-Way AMD CrossFire technologies supported
- Intel Wi-Fi 6 AX201 with 2.4/5 GHz Dual-Band and up to 2.4 Gbps data rate
- Supports up to 128 GB of DDR4 memory with speeds of up to 5000(O.C.) MHz
Innovative Technologies
The Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard features several innovative technologies that set it apart from the competition. With its advanced thermal design, the motherboard ensures optimal cooling and stability even under heavy loads. The inclusion of Intel Thunderbolt 3, Wi-Fi 6 AX201, and USB 3.2 Gen 2 provides unparalleled connectivity and speed. Additionally, the motherboard features a high-quality audio system with support for DTS:X Ultra High Definition Audio.
Advanced Features and Connectivity
The Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard offers a wide range of advanced features and connectivity options, including:
- 6 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 2 x Intel Thunderbolt 3 connectors (USB Type-C ports)
- 4 x USB 3.2 Gen 2 Type-A ports
- 6 x USB 2.0/1.1 ports
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
Part ID: #CAN-02042
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard
|
In Stock | 80,900 | 4 hours ago | |
|
Creatus Computer
Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipset
Intel Z490 Express Chipset
BIOS
2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
E-ATX Form Factor; 30.5cm x 27.1cm
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
Memory
Type
Dual channel memory architecture
Slots
4 x DDR4 DIMM
Supported Memory
Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory
128 GB
Graphics
Graphics
Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory
512MB
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
USB (s)
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp Chipset+Intel Thunderbolt 3 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
LAN Port (s)
1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2) Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio
Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio) Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio) Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x noise detection header 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 2 x temperature sensor headers 1 x power button 1 x reset button 1 x OC button 2 x BIOS switches Voltage Measurement Points
Warranty Information
Manufacturing Warranty
03 Years
Others
Special Features
Support for APP Center @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Part ID: #CAN-02042
Last Updated: 1 month ago
