Product Description

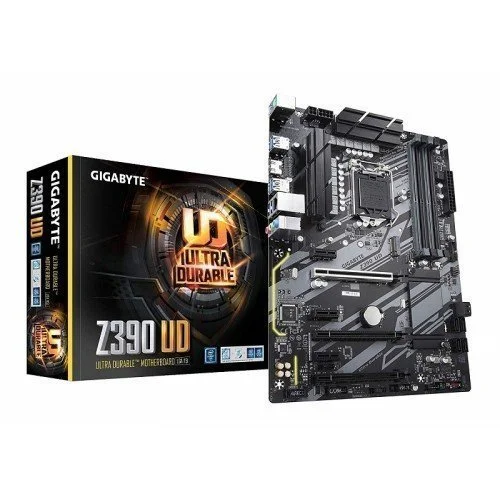

Gigabyte Z390 UD 9th Gen ATX Motherboard

Name: Gigabyte Z390 UD 9th Gen ATX Motherboard
Brand: Gigabyte

This motherboard is designed for enthusiasts and power users who demand high-performance and cutting-edge features. With support for Intel 9th and 8th Gen Core processors, this board delivers exceptional gaming, content creation, and overclocking capabilities.

Key Features and Benefits

Key Technical Features:

Support for Intel 9th and 8th Gen Core processors in the LGA1151 package
Intel Z390 Express Chipset for exceptional performance and features
4 x DDR4 DIMM sockets with support for up to 64 GB of DDR4 memory at 4266(O.C.) MHz
3 x PCI Express x16 slots for multi-GPU support and exceptional graphics performance
1 x M.2 connector for fast NVMe SSD storage and Intel Optane Memory Ready

Proprietary Technologies and Features

Exclusive Technologies:

The Gigabyte Z390 UD motherboard features the following exclusive technologies:

• Ultra Durable Design for exceptional durability and reliability

• 10+2 phases digital PWM design for improved power delivery and overclocking capabilities

• Exclusive 8118 Gaming LAN with Bandwidth Management for fast and reliable networking

• Realtek ALC887 codec for high-definition audio and support for 7.1-channel audio

Connectivity and Expansion Options

This motherboard offers a range of connectivity and expansion options, including:

• 1 x HDMI port with support for up to 4096x2160@30 Hz resolution

• 8 x USB 3.1 Gen 1 ports for fast data transfer and connectivity

• 2 x USB 2.0/1.1 ports for additional connectivity options

• 1 x M.2 connector for fast NVMe SSD storage and Intel Optane Memory Ready

Part ID: #CAN-02105 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Computer Village Gigabyte Z390 UD 9th Gen ATX Motherboard	In Stock	13,000	4 hours ago	Buy Now
Creatus Computer Gigabyte Z390 UD 9th Gen ATX Motherboard	Check Stock	13,000	4 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU

Chipset Intel® Z390 Express Chipset

BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 23.0cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)

M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

Memory

Type DDR4

Slots 4 x DDR4 DIMM sockets

Supported Memory Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Mamory 64 GB

Graphics

Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.

Max Shared Memory 1 GB

Connector & Ports

HDMI 1 x HDMI

USB (s) 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB header

LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready

Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
