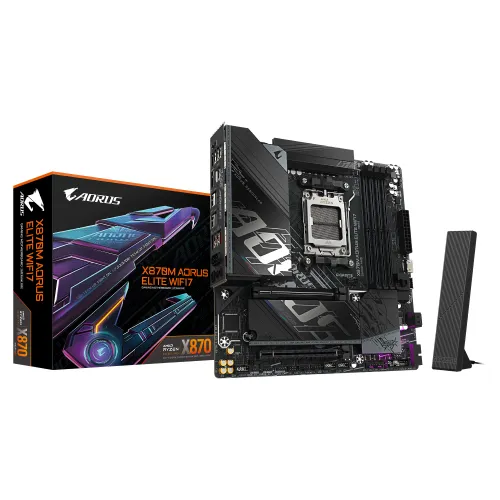

GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard

Status
In Stock
1 stores
Lowest 39,500 BDT
Price Range Single price listing
GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard

Product Description

GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard

This motherboard is designed for gamers, creators, and PC enthusiasts seeking a powerful and compact solution for their modern builds. The GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard delivers cutting-edge performance, advanced thermal design, and ultra-fast networking in a micro-ATX form factor.

Key Features and Performance Highlights

  • Supports AMD Ryzen 9000/8000/7000 Series Processors for Socket AM5
  • Up to 256GB of DDR5 memory with support for AMD EXtended Profiles for Overclocking (AMD EXPO)
  • Ultra-fast PCIe 5.0 expansion and M.2 NVMe SSD support
  • Realtek 2.5GbE LAN and Wi-Fi 7 connectivity for seamless online experiences
  • Compact mATX design with multiple USB 3.2 Gen2 ports and high-definition audio

Advanced Technologies and Features

The GIGABYTE X870M AORUS ELITE WIFI7 Motherboard features an enlarged heatsink design, optimized airflow, and reinforced thermal guards for stable performance under heavy loads. Additionally, the motherboard includes support for GIGABYTE's advanced cooling system, ensuring consistent performance during extended gaming sessions.

Part ID: #CAN-01131 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard
In Stock 39,300 1 week ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors
Chipset AMD X870
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Memory

Type DDR5
Slots 4 x DIMMs
Supported Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Connector & Ports

HDMI 1 x HDMI port
USB (s) CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model X870M AORUS ELITE WIFI7
Supported CPU Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, Max 256GB
Graphics Output 2 x USB4 (Type-C), 1 x HDMI
Features Realtek 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01131 Last Updated: 1 month ago
