Status
In Stock
3 listings tracked
Lowest Deal
37,800
Best Deal
Price Range
37,800 to 39,500
Save 4%
Product Description
Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **37,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01460
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD

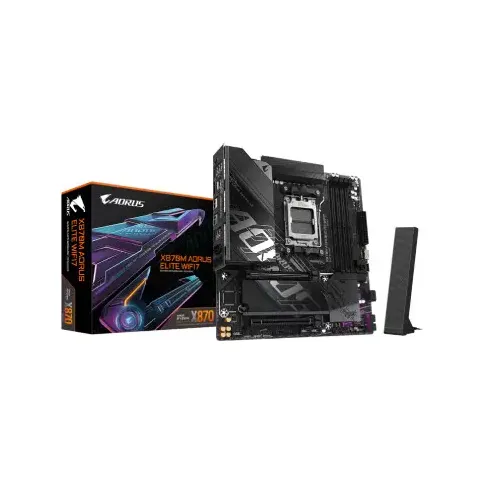

Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
|
In Stock | 37,800 | 2 hours ago | |
|
TechLand BD
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
|
In Stock | 39,500 | 3 hours ago | |
|
PCB Store
Gigabyte X870M AORUS ELITE WIFI 7 AM5 Micro ATX Motherboard
|
Check Stock | 45,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
OS
Support for Windows 11 64-bit
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU+ASMedia USB4 controller:- 2 x USB4 USB Type-C ports on the back panelCPU+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back panelCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available throughthe internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
WiFi
Realtek Wi-Fi 7 RTL8922AE- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Audio
Realtek ALC1220 CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeChipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Chipset
AMD X870
Graphics
ntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4 Controller:- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz* Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Warranty
3-Years
Bluetooth
- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM5, support for:AMD Ryzen 9000 Series Processors/AMD Ryzen 8000 Series Processors/AMD Ryzen 7000 Series Processors
Operating System
Support for Windows 11 64-bit
Special Features
Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport Smart Backup
Software Features
H/W Monitoring:Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled Software:Norton Internet Security (OEM version)iTE I/O Controller Chip
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
External I/O Ports
1 x Clear CMOS button1 x Q-Flash Plus button1 x HDMI port4 x USB 2.0/1.1 ports4 x USB 3.2 Gen 1 ports2 x USB 3.2 Gen 2 Type-A ports (red)2 x USB4 USB Type-C ports (DisplayPort*)1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector
Internal I/O Ports
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x power button1 x reset button2 x temperature sensor headers1 x reset jumper1 x Clear CMOS jumper
Part ID: #CAN-01460
Last Updated: 2 days ago
The Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard is engineered for gamers, power users, and professionals who demand performance, efficiency, and cutting-edge features in a compact Micro ATX form factor. Built on the advanced AMD X870 chipset, this board supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, delivering outstanding processing power and future-ready compatibility. Memory performance reaches new heights with support for DDR5 modules up to 8200(O.C.), dual-channel architecture, and up to 256GB capacity, ensuring superior multitasking and lightning-fast data access. Compatibility with both AMD EXPO and Intel XMP memory profiles enables seamless overclocking, making it an ideal choice for performance enthusiasts. On the storage side, the motherboard provides versatile options with four M.2 slots (including PCIe 5.0 x4 support on Ryzen 9000/7000 CPUs), PCIe 4.0 lanes, and four SATA 6Gb/s ports, along with support for RAID 0/1/5/10 configurations, giving users flexibility and reliability in building high-speed storage arrays. Graphics support is impressive with PCIe 5.0 x16 slots for next-gen GPUs, along with integrated Radeon Graphics providing multiple display outputs, including dual USB4 Type-C ports with DisplayPort 1.4 support (3840x2160@240Hz) and HDMI 2.1 (4096x2160@60Hz). Networking is cutting-edge with Realtek 2.5GbE LAN and Wi-Fi 7 (802.11be) for blazing-fast connectivity, plus Bluetooth 5.4 for seamless device pairing. The premium Realtek ALC1220 audio codec delivers high-definition 7.1-channel surround sound with S/PDIF out, ensuring an immersive audio experience. Expansion and connectivity are abundant, with multiple USB ports, including USB4, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1, alongside legacy USB 2.0 options. Builder-friendly features like Q-Flash Plus, Smart Backup, onboard power/reset buttons, ARGB headers, RGB headers, fan/water cooling pump headers, and temperature sensors enhance usability and customization for high-performance PC builds. With its Micro ATX 24.4cm x 24.4cm design, it offers compact versatility without compromising on features. Backed by a 3-year brand warranty, the Gigabyte X870M AORUS ELITE WIFI 7 is an exceptional foundation for gamers and professionals who want next-generation performance, connectivity, and reliability in a space-saving motherboard.
