Product Description

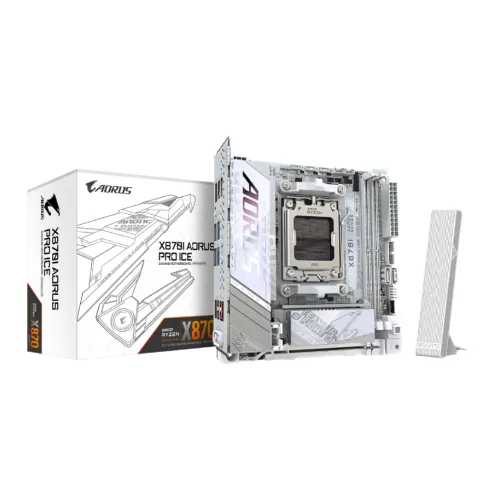

GIGABYTE X870I AORUS PRO ICE DDR5 AM5 Mini-ITX Motherboard
The GIGABYTE X870I AORUS PRO ICE motherboard is designed for enthusiasts who demand uncompromising performance in a compact build. Engineered for the latest AMD Ryzen AM5 processors, this motherboard delivers ultra-fast responsiveness, lightning-fast data transfer, and superior performance for gaming, streaming, and content creation.
Key Features and Benefits
- Supports next-generation DDR5 memory with speeds up to 5600 MT/s and capacity up to 128GB
- Future-ready PCIe 5.0 slots for the latest graphics cards and NVMe SSDs
- Advanced AORUS thermal design with optimized heatsinks and guards for stable temperatures
- Cutting-edge connectivity featuring Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5GbE LAN
- Multiple USB 3.2 Gen2 and Type-C ports for versatile peripheral support
Proprietary Technologies and Design
The GIGABYTE X870I AORUS PRO ICE motherboard boasts a striking ICE-themed aesthetics and an advanced thermal design that keeps temperatures stable even under heavy loads. With features like optimized heatsinks and guards, this motherboard delivers exceptional performance and reliability.
Part ID: #CAN-01170
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD
Gigabyte X870I AORUS PRO ICE DDR5 AMD AM5 ATX Motherboard
|
In Stock | 66,500 | 3 hours ago | |
|
Star Tech
GIGABYTE X870I AORUS PRO ICE DDR5 AM5 Mini-ITX Motherboard
|
In Stock | 67,300 | 1 week ago | |
|
TechLand BD
Gigabyte X870I AORUS PRO ICE DDR5 AMD AM5 ATX Motherboard
|
In Stock | 67,300 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors
Chipset
AMD X870
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
Audio
Realtek ALC4080 CODEC High Definition Audio 2-channel
Expansion Slots
PCI
1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Memory
Type
DDR5
Slots
2 x DDR5 DIMM
Supported Memory
Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Maximum Memory
up to 128 GB (64 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Connector & Ports
HDMI
1 x HDMI
USB (s)
CPU+ASMedia USB4® controller: - 1 x USB4® USB Type-C® port on the back panel CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices
Audio
Realtek ALC4080 CODEC High Definition Audio 2-channel
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks (Note) Actual support may vary by CPU.
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
X870I AORUS PRO ICE
Supported CPU
Ryzen 9000 / 8000/ 7000 Series Processors for Socket AM5
Supported RAM
2x DDR5, Max 128GB
Graphics Output
1 x USB4 (Type-C) , 1 x HDMI
Features
Realtek 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01170
Last Updated: 1 month ago
