Product Description
Unleash Your Gaming Potential with the X870 GAMING WIFI6

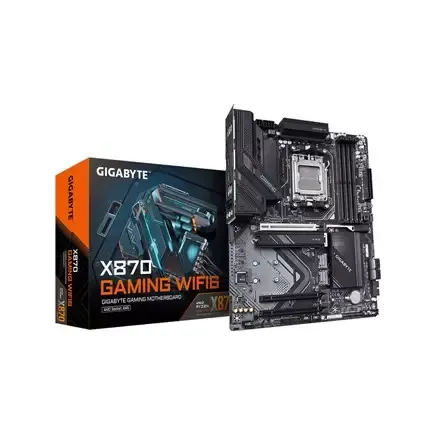

The Gigabyte X870 GAMING WIFI6 AM5 ATX Motherboard is designed for modern gamers and creators who demand high-performance and reliability. With support for the latest AMD Ryzen 7000, 8000, and 9000 Series processors, this motherboard delivers outstanding speed and efficiency for demanding workloads.
Key Features and Benefits
- Supports up to 256GB of DDR5 memory across four DIMM slots with speeds reaching up to 8000MT/s (OC)
- Advanced 8+2+2-phase digital VRM design and a durable 6-layer PCB for stable power delivery and excellent thermal performance
- Multiple M.2 slots with PCIe 5.0 x4 support, a PCIe 5.0 x16 slot for next-generation GPUs, and several SATA ports for additional drives
- Connectivity options include WiFi 6, Bluetooth, 2.5GbE LAN, USB4/USB-C ports, and HDMI output for integrated graphics support
- Supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors
Advanced Technologies for Unmatched Performance
The X870 GAMING WIFI6 features an advanced 8+2+2-phase digital VRM design, ensuring stable power delivery and excellent thermal performance. This motherboard also boasts a durable 6-layer PCB for enhanced reliability and durability.
Part ID: #CAN-01495
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Memory
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Chipset
AMD X870
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Warranty
03 years
Wireless
Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
CPU Socket
AM5
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Memory Slot
4x 288-Pin
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
External I/O Ports
2x USB-C (USB4) 1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) Thunderbolt No Display 1x HDMI Audio 3x 1/8" / 3.5 mm Ethernet / Controller 1x Realtek 2.5Gigabit Wi-Fi Antenna 2x Connector Buttons BIOS Flashback
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 4 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper
