Product Description

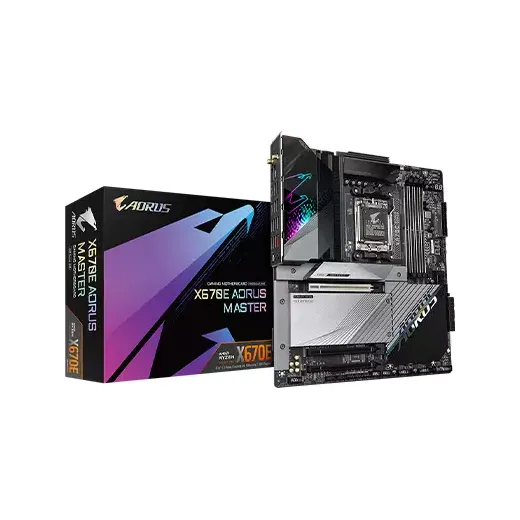

Unleash Unparalleled Performance with the GIGABYTE X670E AORUS MASTER
Designed for enthusiasts and power users seeking the ultimate gaming and content creation experience, the GIGABYTE X670E AORUS MASTER motherboard is engineered to deliver unmatched performance, cutting-edge connectivity, and sleek design. Built for the latest AMD Ryzen 8000 & 7000 Series Processors, this E-ATX motherboard is the perfect foundation for your next-gen gaming PC.
Key Features and Benefits
- Supports AMD Ryzen 8000 & 7000 Series Processors for AMD socket AM5
- Direct 16+2+2 Phases Digital VRM Solution for unparalleled performance
- 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support for optimal memory performance
- 4x PCIe 5.0 x4 M.2 Connectors for next-generation storage and lightning-fast data transfer
- DisplayPort over USB Type-C for seamless 4K display support and SuperSpeed USB connectivity
- 802.11ax Wi-Fi 6E with a new dedicated 6GHz band for gigabit wireless performance and faster data transfer
Proprietary Technologies for Enhanced Performance
The GIGABYTE X670E AORUS MASTER motherboard features several cutting-edge technologies designed to deliver exceptional performance and thermal efficiency. The Fins-Array III heatsink provides the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increase surface area. The M.2 Thermal Guard III is constructed with a 9X optimized heat dissipation surface to prevent throttling and bottleneck that the high-speed/large capacity of PCIe 5.0 M.2 SSDs may cause, especially under a heavy workload. These innovative technologies ensure that your system stays cool and performs at its best, even under intense workloads.
Part ID: #CAN-01557
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 2.0/1.1 ports on the back panel 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers 4 x USB 3.2 Gen 1 ports on the back panel
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Intel Wi-Fi 6E AX210
Audio
Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel output * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
Memory
Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
Chipset
AMD X670
Graphics
Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.
Warranty
2 years
Bluetooth
BLUETOOTH 5.3
Dimension
30.5cm x 26.9cm
Form Factor
E-ATX Form Factor
Supported CPU
AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
Supported Storage
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 6 x SATA 6Gb/s connectors
External I/O Ports
1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points
