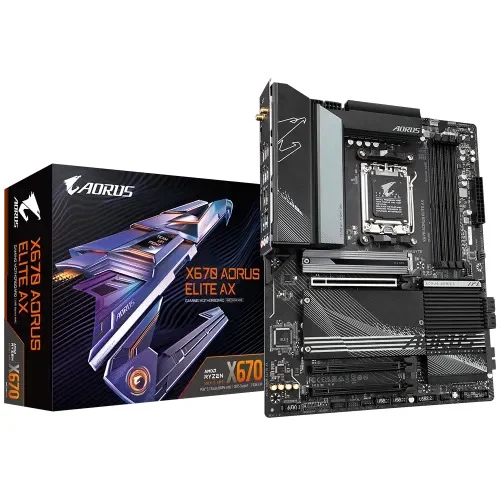

Specification Basic Information Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors Chipset AMD X670 BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor ATX Form Factor; 30.5cm x 24.4cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Expansion Slots PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) Memory Type DDR5 Slots 4 DIMMs Supported Memory Support for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules Maximum Memory Up to 128 GB (32 GB single DIMM capacity) of system memory Graphics Graphics Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. Connector & Ports HDMI 1 x HDMI port USB (s) CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices Audio 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Others Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Warranty Information Manufacturing Warranty 3 Years Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard AMD Ryzen 7000 Series Processors for AMD socket AM5 are supported by the Gigabyte X670 AORUS ELITE AX Motherboard. With a straight 16+2+2 Phases Digital VRM Solution, it can give performance that is unmatched. The 4x SMD DIMMs on the Gigabyte X670 AORUS ELITE AX Motherboard support AMD EXPO and Intel XMP memory modules. Memory modules for DDR5 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200(MT/s), 4800(OC), and 4400MT/s are supported. For next-generation storage, it has 4x PCIe 5.0 x4 M.2 Connectors. In order to guarantee VRM power stability and 25110 PCIe 5.0 M.2 SSD performance, it has a Fins-Array III and M.2 Thermal Guard III. By adopting Extended Irregular fins to completely fill every available space and significantly increase surface area, the next generation Fins-Array III provides the highest level of thermal performance. The surface area of a Fins-Array III heatsink is equivalent to two full-size ATX motherboard PCBs, which greatly improves thermal efficiency and heat exchange performance. Additionally, it includes M.2 Connectors with Quick Release & Screwless Design as well as SMD PCIe 5.0 x16 Slot. To minimize throttling and bottlenecking that the high-speed/large capacity of PCIe 5.0 M.2 SSDs may cause, especially under a heavy workload, M.2 Thermal Guard III is built with a 9X enhanced heat dissipation surface. The in-chassis air flow is further improved and the effectiveness of heat convection is optimized by the unique design of heatsink grooves facing the CPU. With the newest 802.11ax Wi-Fi 6E technology and a new dedicated 6GHz band, the Gigabyte X670 AORUS ELITE AX Motherboard offers gigabit wireless performance, seamless video streaming, improved gaming, fewer dropped connections, and speeds up to 2.4Gbps. Additionally, Bluetooth 5 offers a 4X greater range than Bluetooth 4.2 and quicker communication. Three years of warranty are included with the Gigabyte X670 AORUS ELITE AX. ..
