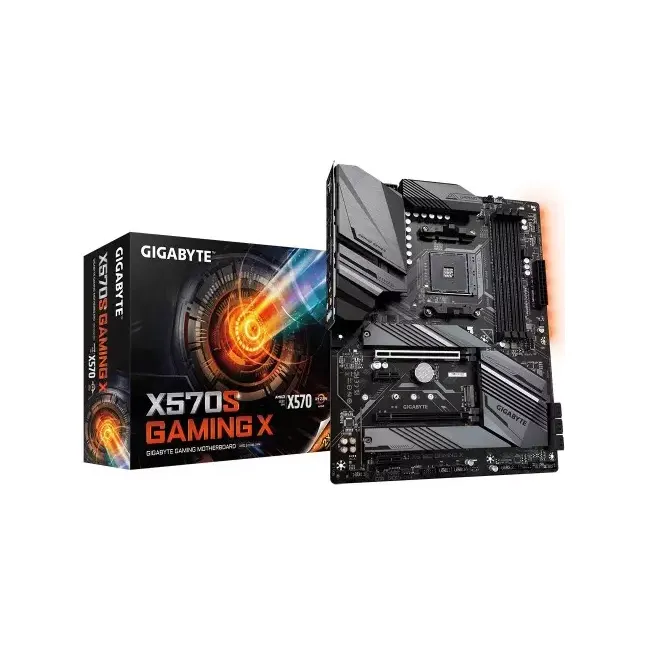

Gigabyte X570S GAMING X Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. The latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory and IO design to unleash the full potential . With the best quality components and GIGABYTE R&D design capability, X570S GAMING X is a true beast among motherboards. This motherboard comes with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN with Bandwidth Management, Rear and Front USB3.2 Type-C for Fast and Versatile Connections. This motherboard designed with High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. The Gigabyte X570S GAMING X featured with Fully Covered Thermal Design, 5 W/mK Thermal Pad, 1X M.2 Thermal Guard II, 1X M.2 Thermal Guard. A high-end product needs to be future-proof so your PC stays up-to-date with the latest technology. X570S GAMING X comews with all next generation network, storage, and connectivity to keep you up to speed. The latest Gigabyte X570S GAMING X Supports offers 03 years warranty. Specifications Basic Information Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen™ 2000 G-Series Processors Chipset AMD X570 BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor ATX Form Factor; 30.5cm x 24.4cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Expansion Slots PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot. 2 x PCI Express x1 slots, integrated in the Chipset, supporting PCIe 4.0(Note)/3.0(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. Memory Type Dual channel memory architecture Slots 4 x DDR4 DIMM sockets Supported Memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Maximum Memory supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Graphics Graphics Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Max Shared Memory Maximum shared memory of 16 GB Connector & Ports HDMI 1 x HDMI por USB (s) 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. Internal I/O Ports Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumperAll fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.Back Panel Connectors: 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 6 x audio jacks I/O Controller: iTE I/O Controller Chip TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) Warranty Information Manufacturing Warranty 03 years Others Special Features Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Insta Bundled Software Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility  ..
