Product Description
Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **46,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01715
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House

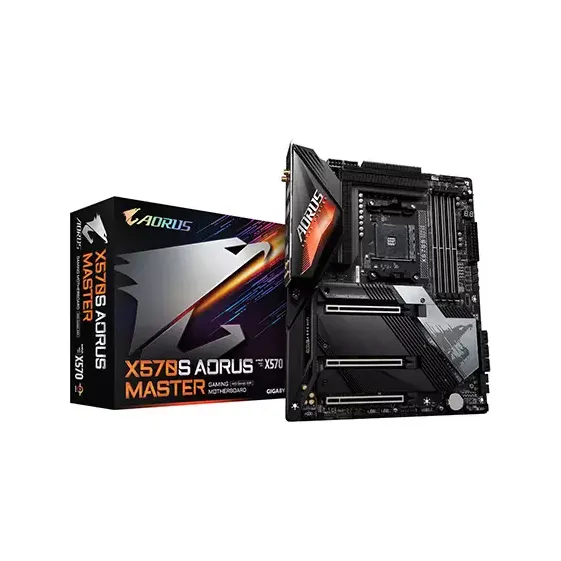

Gigabyte X570S AORUS MASTER AMD ATX Motherboard
|
In Stock | 46,500 | 2 hours ago | |
|
TechLand BD
Gigabyte X570S AORUS MASTER AM4 ATX Motherboard
|
Check Stock | 40,999 | 3 hours ago | |
|
Nexus Computer
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
|
Check Stock | 41,950 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports, available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® ALC1220-VB audio CODEC * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots
3 x PCI Express 4.0 x16* * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Memory
Number of Memory Slots 4×288pin Memory Standard DDR4 5400(OC)/ 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 4000 G-Series processors) DDR4 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 Series processors) DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 Series processors) DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 G-Series Processors / AMD Ryzen 2000 Series Processors / AMD Ryzen 2000 G-Series Processors) Maximum Memory Supported 128GB Channel Supported Dual Channel ECC Supported Yes Buffer Supported Un-buffered
Chipset
AMD X570
Graphics
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.
Warranty
03 Years
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Supported CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
External I/O Ports
1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS jumper Voltage Measurement Points
Part ID: #CAN-01715
Last Updated: 2 days ago
Gigabyte X570S AORUS MASTERGigabyte X570S AORUS MASTER AMD ATX Motherboard Supports AMD Ryzen 5000 Series/ Ryzen 4000 G Series/ Ryzen 3000 Series/ Ryzen 3000 G Series/ Ryzen 2000 Series/ Ryzen 2000 G Series Processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings. It features Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage and Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate. The Gigabyte X570S AORUS MASTER is equipped with Intel WiFi 6E 802.11ax & BT 5.2 and Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. This motherboard is supported with Blazing Fast Intel 2.5GbE LAN with cFosSpeed. Featuring the USB 3.2 Gen 2×2 design which is doubled the performance than the previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals.125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB, and WIMA Audio Capacitors. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips.Features:Supports AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series ProcessorsDual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMsActive OC Tuner features Dynamic Change Between P.B.O. and Manual OC SettingsDirect 14+2 Phases Infineon Digital VRM Solution with 70A Power StageAdvanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal BackplateIntel® WiFi 6E 802.11ax & BT 5.2Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal GuardsBlazing Fast Intel® 2.5GbE LAN with cFosSpeedSuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB and WIMA Audio CapacitorsSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise DetectionRGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED StripsQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics CardSee More Motherboard
