Product Description
Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **16,900 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-02123
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Motherboard Basic Info
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots
BIOS
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Motherboard Basic Information
Supported CPU
AMD Ryzen™ processor AMD 7th Generation A-series/Athlon™ processors
Chipset
AMD X470
Expansion Slots
M.2 Socket
2 x M.2 Socket 3 connectors
Memory Specifications
Type
Dual Channel DDR4 Memory Technology
Graphics Specifications
Max Shared Memory
2 GB
Motherboard Memory Info
Slots
4 x DDR4 DIMM sockets
Supported Memory
Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Motherboard Graphics Info
Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* * Support for HDMI 2.0 version and HDCP 2.2.* * Actual support may vary by CPU.
Connector & Ports (MB)
USB (s)
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header 4 x USB 3.1 Gen 1 ports, available through the internal USB headers 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)
Intel® GbE LAN chip (10/100/1000 Mbit)
Audio
5 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x temperature sensor header
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4* /x2 SSD support) (M2A_SOCKET) * Actual bandwidth may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Warranty Information
Manufacturing Warranty
03 years
Part ID: #CAN-02123
Last Updated: 2 days ago

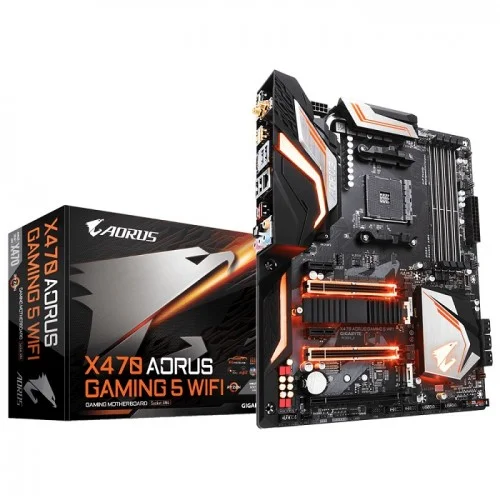

GIGABYTE X470 AORUS GAMINGAORUS X470 Gaming Motherboards feature a design concept inspired by the wings of an eagle. The sleek design of the I/O armor resembles the shape of the wing while the claw marks and airflow design are inspired by the wing's impressive aerodynamic features.GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.Supports AMD Ryzen™ 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsDual Channel Non-ECC Unbuffered DDR4, 4 DIMMs8+3 Phase Hybrid Digital PWM Design2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ DesignIntel® 802.11ac Wave2 2T2R WIFI & BT 5ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio CapacitorsDual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal GuardRGB FUSION 2.0 with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED StripsIntel® Ethernet LAN with cFOS Speed Internet AcceleratorUSB DAC-UP 2 with Adjustable VoltageAnti-Sulfur Resistors DesignUltra Durable™ 25KV ESD and 15KV Surge LAN ProtectionCEC 2019 Ready, Save Power with a Simple ClickGIGABYTE X470 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.The benefits of AMD StoreMI:-Making the PC experience fast, smooth and easy-Optimizing computer responsiveness from system boot to application launch-Offering SSD performance with HDD capacity at an affordable cost-Quickly accessing key files by automatically learning users' computing behaviorsSee More Motherboard
