Product Description
Engineered by Gigabyte, this motherboard is featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **30,500 ৳**, with active inventory listings tracked from Ultra Technology, Skyland BD.
Part ID: #CAN-10362
Last Updated: 5 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Back Panel Connectors
1 x PS/2 keyboard/mouse port 1 x HDMI port* 2 x DisplayPorts* 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
I/O Controller
iTE® I/O Controller Chip
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Memory
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11.
Storage Interface
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Unique Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
USB
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Main Features
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset
Intel ® B860 Express Chipset
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Physical Specification
Expansion Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)
Warranty Information
Warrantty
3 years
Part ID: #CAN-10362
Last Updated: 5 days ago

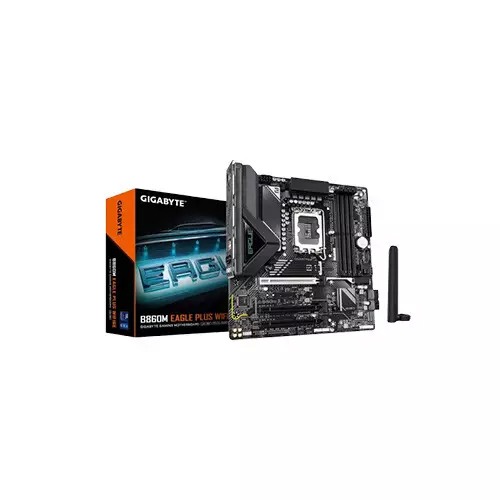

The GIGABYTE B860M EAGLE PLUS WIFI6E Motherboard is a high-performance Micro ATX board designed for gamers, content creators, and PC enthusiasts seeking speed, reliability, and next-generation connectivity. Built on the Intel® B860 chipset with an LGA1851 socket, it supports Intel® Core™ Ultra processors, delivering future-ready performance for gaming, multitasking, and creative workloads. It features four DDR5 DIMM slots supporting up to 256 GB memory at speeds up to 9066(O.C.) MT/s, with dual-channel architecture and XMP profiles for optimized memory performance. Integrated graphics support includes dual DisplayPort 2.1 (3840×2160@144 Hz) and HDMI 2.1 (4096×2160@60 Hz), while the Realtek® Audio codec provides up to 7.1-channel high-definition audio. Networking combines Realtek® 2.5GbE LAN and Intel®/Realtek® Wi-Fi 6E with Bluetooth 5.3 for stable wired and wireless connectivity. Storage options include two M.2 slots (PCIe 5.0/4.0) and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support. Expansion slots feature PCIe 5.0 x16, PCIe 4.0 x16 (x1 mode), and PCIe 4.0 x1 slots for graphics cards and additional components. Connectivity includes USB 3.2 Gen 2, USB Type-C®, USB 3.2 Gen 1, and USB 2.0 ports. RGB headers, multiple fan/pump headers, and hardware monitoring provide customizable lighting, advanced cooling, and system stability.Crystal-Clear Visuals and Powerful Memory SupportThe GIGABYTE B860M EAGLE PLUS WIFI6E delivers ultra-sharp 4K visuals via dual DisplayPort 2.1 and HDMI 2.1 while supporting DDR5 memory up to 256 GB for high-speed gaming and multitasking.Seamless Connectivity and Storage ExpansionTwo M.2 slots and four SATA ports with RAID support provide flexible, high-speed storage solutions. USB 3.2 Gen 2, Gen 1, and Type-C® ports ensure versatile peripheral connectivity.Reliable Networking and Superior AudioEquipped with Wi-Fi 6E, Bluetooth 5.3, and Realtek® 2.5GbE LAN, the motherboard offers stable wired and wireless connections. The Realtek® Audio codec delivers immersive 7.1-channel high-definition sound.Why Choose the GIGABYTE B860M EAGLE PLUS WIFI6E?Supports Intel® Core™ Ultra processorsHigh-speed DDR5 memory up to 9066(O.C.) MT/s, 256 GB max capacityDual M.2 slots with PCIe 5.0/4.0 support and RAID capability4K-ready DisplayPort 2.1 and HDMI 2.1 graphics outputWi-Fi 6E, Bluetooth 5.3, and Realtek® 2.5GbE LAN connectivity7.1-channel HD audio with Realtek® Audio codecCustomizable RGB lighting and advanced cooling optionsMicro ATX form factor with compact and durable designBuy Now GIGABYTE Intel B860M EAGLE PLUS WIFI6E Motherboard at Ultra TechnologyThe GIGABYTE B860M EAGLE PLUS WIFI6E Micro ATX Motherboard, available at Ultra Technology, combines DDR5 performance, PCIe 5.0 storage support, Wi-Fi 6E, Bluetooth 5.3, and advanced connectivity in a compact, durable design. Ideal for gamers, creators, and professionals seeking a powerful and versatile platform...
