Status
In Stock
2 stores
Lowest Deal
15,800 BDT
Best Deal
Price Range
15,800 to 17,300 BDT
Save 9%
Product Description

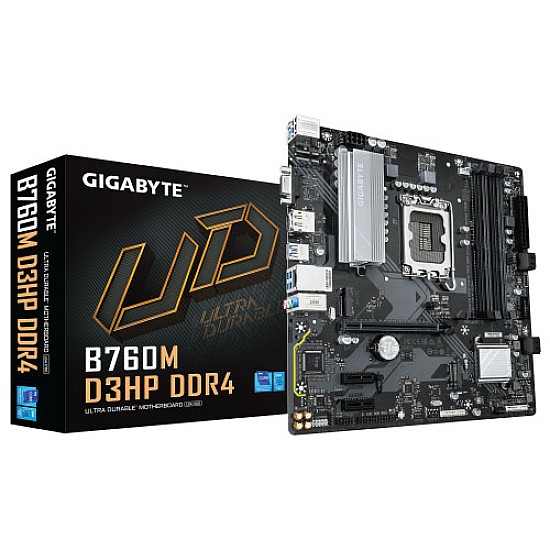

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **15,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-09782
Last Updated: 1 hour ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel® Core™ 14th/ 13th /12th processors, Pentium® Gold, Celeron®
Chipset
Intel® B760 Express Chipset
BIOS
1 x 128 Mbit flash, AMI UEFI BIOS
Form Factor
Micro ATX
Audio
channel audio, access the audio software for audio settings.
Expansion Slots
M.2 Socket
Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
PCI
1 x PCI Express x16 slot, 2 x PCI Express x1 slots
Memory
Maximum Memory
128 GB
Slots
4 x DDR4 DIMM sockets
Supported Memory
DDR4 5333(O.C.) to 2133 MT/s
Type
C® header, with USB 3.2 Gen 1 support
Graphics
Graphics
Intel® HD Graphics support:
Ports, Connectors & Slots
Audio
channel audio, access the audio software for audio settings.
D-Sub (s)
1 x D-Sub port
Display Port (s)
1 x DisplayPort
HDMI/VGA
1 x HDMI port, 1 x D-Sub port
Internal I/O Ports
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header, 1 x serial port header, 1 x parallel port header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
LAN Port (s)
1 x RJ-45 port
Supported Storage
2 x PCIe 4.0 x4 M.2 connectors, 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )
1 x Trusted Platform Module header
USB (s)
1 x USB Type-C® port, 5 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports
Other Features
Special Features
Support for GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Part ID: #CAN-09782
Last Updated: 1 hour ago
