Product Description

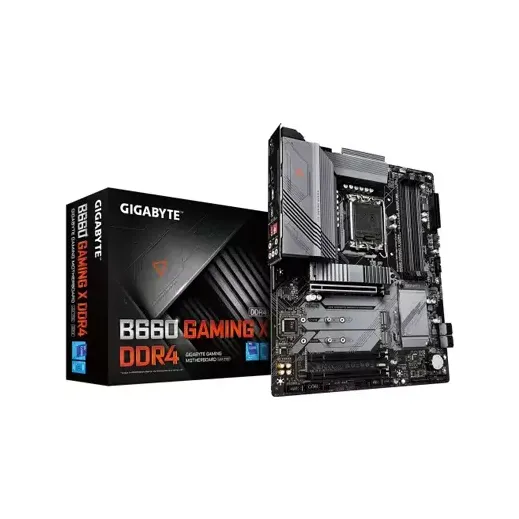

Gigabyte GIGABYTE INTEL B660 GAMING X DDR4 PCIE 4.0 ATX MOTHERBOARD
Upgrade Your Gaming Experience
Designed for gamers and power users, the Gigabyte GIGABYTE INTEL B660 GAMING X DDR4 PCIE 4.0 ATX MOTHERBOARD is an exceptional motherboard that offers cutting-edge performance, advanced features, and rock-solid reliability. With its powerful 12th Gen Intel Core processor support, this motherboard delivers lightning-fast data transfer speeds, enhanced gaming experiences, and unparalleled system control.
Key Features and Benefits
- Support for 12th Gen Intel Core processors with Dual Channel Non-ECC Unbuffered DDR4 memory
- PCIe 4.0 x4 M.2 slot with Thermal Guard for improved storage performance
- Fast 2.5 GbE GAMING LAN with Bandwidth Management for seamless online gaming
- RGB FUSION 2.0 support for customizable lighting effects and aesthetics
- Q-Flash Plus update BIOS without installing the CPU, memory, and graphics card
Advanced Cooling and Performance Technologies
The Gigabyte GIGABYTE INTEL B660 GAMING X DDR4 PCIE 4.0 ATX MOTHERBOARD features a range of innovative cooling and performance technologies, including:
- Fully Covered Thermal Design with high-coverage MOSFET and integrated molding heatsinks for improved thermal efficiency
- M.2 Thermal Guard to prevent throttling and bottlenecks from high-speed M.2 SSDs
- 2X Copper PCBs design for lower component temperatures and improved performance
Part ID: #CAN-01654
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
GIGABYTE B660 GAMING X DDR4 ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
Gigabyte B660 GAMING X DDR4 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Sell Tech
Gigabyte B660 GAMING X DDR4 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
GIGABYTE INTEL B660 GAMING X DDR4 PCIE 4.0 ATX MOTHERBOARD
|
Check Stock | 18,499 | 4 hours ago | |
|
Binary Logic
Gigabyte B660 GAMING X DDR4 12th Gen Motherboard
|
Check Stock | 20,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Memory
Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel B660 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Warranty
3 years
Dimension
30.5cm x 24.4cm
Form Factor
ATX Form Factor
Supported CPU
LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
External I/O Ports
1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI 2.0 port 1 x RJ-45 port 6 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01654
Last Updated: 1 month ago
