Product Description

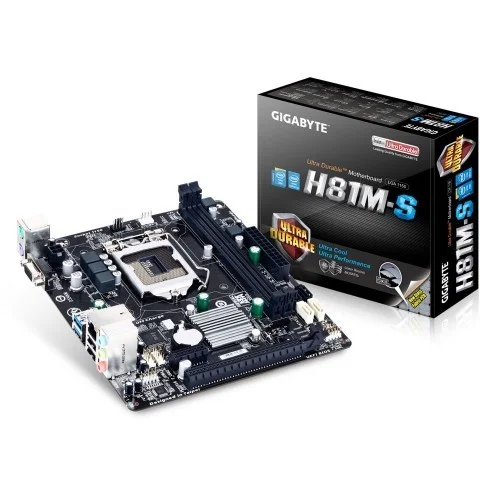

Gigabyte H81M-S 4th Gen Intel Motherboard
Upgrade your PC build with the Gigabyte H81M-S, a reliable and feature-rich motherboard designed for users seeking a seamless integration of 4th Generation Intel Core processors. This motherboard offers a unique blend of performance, power efficiency, and innovative technologies that cater to enthusiasts and professionals alike.
Key Features and Benefits
- Supports Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1150 package
- 2 x DDR3 DIMM sockets with Dual Channel Architecture, supporting up to 16 GB of DDR3 1600/1333 MHz memory
- 1 x PCI Express x16 slot and 1 x PCI Express x1 slot for versatile expansion options
- Realtek GbE LAN chip for reliable networking and 1 x RJ-45 port for easy connectivity
- 2 x SATA 6Gb/s connectors and 2 x SATA 3Gb/s connectors for fast storage and data transfer
Gigabyte's Innovative Technologies
As part of the GIGABYTE 8 Series, this motherboard debuts with GIGABYTE Ultra Durable technology, which includes:
- High current capable power delivery and performance-enhancing caching technologies
- Exclusive high-end audio features with Realtek ALC887 codec
- Advanced networking capabilities with the Realtek GbE LAN chip
- Support for ON/OFF Charge and USB Blocker features for convenient device charging
Part ID: #CAN-02022
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Key Features
Form Factor
mATX
Basic Information
Chipset
Intel H81 Express Chipset
Supported CPU
Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
BIOS
1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 19.0cm x 17.0cm
Memory
Ram Type
DDR3
Type
Dual Channel Architecture
Slots
2 x DDR3 DIMM sockets
Supported Memory
DDR3 1600/1333 MHz memory modules non-ECC memory modules Extreme Memory Profile (XMP) memory modules
Maximum Mamory
16 GB
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot
Graphics
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Max Shared Memory
1 GB
Connector & Ports
USB (s)
2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports
LAN Port (s)
Realtek GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port
Supported Storage
2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3)
Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors CPU fan header system fan header front panel header front panel audio header speaker header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x Clear CMOS jumper
D-Sub (s)
1 x D-Sub port
Warranty Information
Manufacturing Warranty
3 Years
Others
Special Features
Q-Flash Xpress Install APP Center @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Part ID: #CAN-02022
Last Updated: 1 month ago
