Product Description
Engineered by Gigabyte, this motherboard is supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **12,000 ৳**, compared dynamically across 3 major computer shops.
Part ID: #CAN-01471
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology

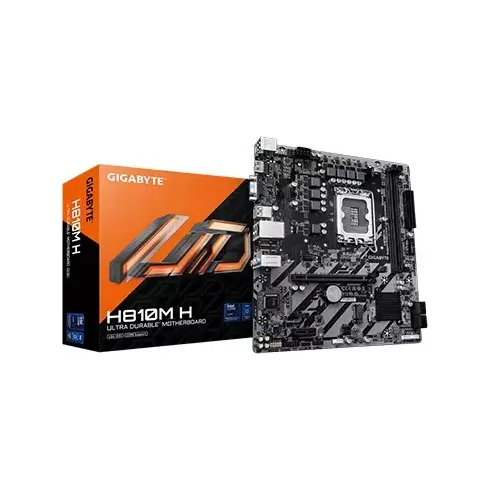

Gigabyte H810M H LGA1851 DDR5 Intel Motherboard
|
In Stock | 12,000 | 2 hours ago | |
|
TechLand BD
Gigabyte H810M H LGA1851 DDR5 Intel Motherboard
|
In Stock | 12,200 | 2 hours ago | |
|
PCB Store
Gigabyte H810M H LGA1851 DDR5 Intel Motherboard
|
In Stock | 12,200 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port (Note)
Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Memory
Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel H810 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on CPU support.)
Warranty
03 years
Dimension
24.4cm x 21.5cm
Form Factor
Micro ATX Form Factor
Supported CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
External I/O Ports
1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x D-Sub port 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
Part ID: #CAN-01471
Last Updated: 2 days ago
Gigabyte H810M H DDR5 MotherboardGigabyte H810M H is a high-performance Micro ATX motherboard designed to support Intel® Core™ Ultra Processors with the LGA1851 socket. Built with the Intel H810 Express Chipset, this motherboard combines stability, speed, and efficiency, making it suitable for modern computing needs ranging from productivity tasks to multimedia usage.CPU & Chipset SupportThe board is equipped with the LGA1851 socket, offering compatibility with the latest Intel® Core™ Ultra processors. It leverages the Intel H810 Express Chipset, ensuring efficient system performance and reliable data handling. The L3 cache support varies based on the installed CPU, providing flexibility across different processor options.Memory PerformanceThe motherboard supports DDR5 memory modules with speeds up to 6400/5600 MT/s, ensuring faster multitasking and application performance. With 2 DDR5 DIMM slots, users can install up to 128 GB of RAM, supporting dual-channel architecture. It accommodates both ECC (non-ECC mode) and non-ECC unbuffered DIMMs, along with XMP memory profiles for enhanced tuning.Graphics & DisplayIntegrated Intel® HD Graphics support allows for dual display options:1 x HDMI port supporting 4K resolution (4096x2160 @60Hz) with HDMI 2.1 and HDCP 2.3 compliance.1 x D-Sub port supporting up to 1920x1200 @60Hz.This ensures excellent visual quality for work, media, and casual gaming.Connectivity & ExpansionNetworking is handled by a Realtek® GbE LAN chip, offering speeds up to 1 Gbps. Expansion options include 1 PCIe 4.0 x16 slot for a GPU or NVMe SSD and 1 PCIe 3.0 x1 slot for additional cards.Ports & I/OThe board offers rich connectivity with:USB 3.2 Gen 1 and USB 2.0 ports (rear & internal headers)USB Type-C® supportHDMI & D-Sub video outputs3 audio jacks and PS/2 combo portDesign & Form FactorWith a Micro ATX form factor measuring 24.4cm x 21.5cm, the Gigabyte H810M H fits easily into most cases while providing excellent functionality. It is designed for users seeking a balance between performance, expandability, and reliability...
