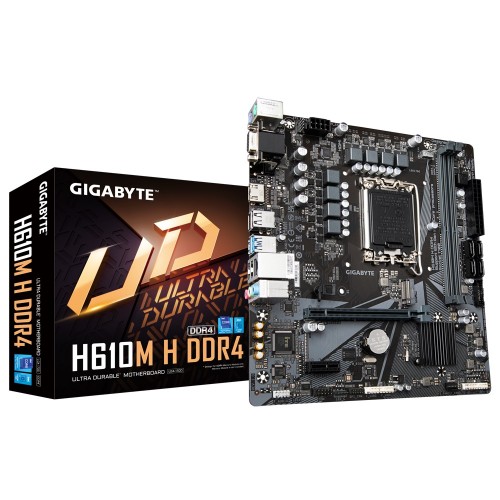

GIGABYTE H610M H DDR4 Micro ATX Motherboard

The GIGABYTE H610M H DDR4 motherboards are designed for PC enthusiasts, gamers, and professionals seeking a reliable and feature-packed platform for their next-generation Intel Core, Pentium Gold, and Celeron Processors. With its advanced features and robust design, this motherboard offers unparalleled performance and versatility for a wide range of applications.

Key Features and Technical Specifications

• Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors
• Dual-channel non-ECC unbuffered DDR4 with 2 DIMMs, supporting up to 64 GB of system memory
• Realtek 8118 LAN for high-performance and friendly network connectivity
• Smart Fan 6 with Multiple Temperature Sensors and Hybrid Fan Headers for optimal cooling
• Dual display support via HDMI and D-Sub ports
• TPM 2.0 header for enhanced security and data protection

Advanced Technologies and Performance Enhancements

The GIGABYTE H610M H DDR4 motherboard is equipped with a range of advanced technologies that enhance performance, stability, and security. Solid capacitors improve transient response and minimize oscillation, while Smart Fan 6 features Multiple Temperature Sensors and Hybrid Fan Headers for optimal cooling. Additionally, the motherboard features a 6+1+1 hybrid digital VRM design for efficient power delivery and a Realtek 8118 LAN for high-performance network connectivity.

Connectivity and Expansion Options

The GIGABYTE H610M H DDR4 motherboard offers a range of connectivity and expansion options, including:

• 4 x USB 3.2 Gen 1 ports (2 on the back panel, 2 available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• 1 x HDMI 2.0 port
• 1 x D-Sub port
