Product Description

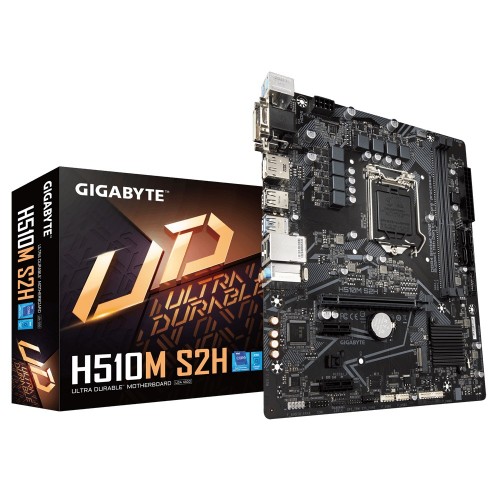

GIGABYTE H510M S2H Intel 10th and 11th Gen Micro ATX Motherboard
This motherboard is designed for gamers and enthusiasts who demand high-performance computing and seamless gaming experiences. The GIGABYTE H510M S2H supports 11th and 10th Gen Intel Core Series Processors, delivering exceptional processing power and efficiency.
Key Features and Benefits
- Dual Channel Non-ECC Unbuffered DDR4 Memory Support, up to 64 GB (32 GB single DIMM capacity)
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface for rapid storage and data transfer
- Realtek 8118 Gaming LAN with Bandwidth Management for seamless online gaming experiences
- 4 Display Interfaces Support, including HDMI, DisplayPort, D-Sub, and DVI-D
- High-End Audio Capacitors for exceptional audio fidelity and realism
Exclusive GIGABYTE Technologies
The GIGABYTE H510M S2H features several innovative technologies that enhance performance, cooling, and durability. These include:
Smart Fan 6 with Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, ensuring optimal cooling and quiet operation.
Realtek 8118 LAN for high-performance and friendly network connectivity, with automatic bandwidth allocation for game and application priority.
Anti-Sulfur Design with resistors, providing Ultra Durable Motherboards with improved reliability and longevity.
Part ID: #CAN-01235
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
PC House
Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
|
In Stock | 9,500 | 1 month ago | |
|
Computer Village
Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
|
In Stock | 9,800 | 4 hours ago | |
|
Creatus Computer
Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
|
In Stock | 10,299 | 5 hours ago | |
|
Sell Tech
GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
Chipset
Intel H510 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 21.0cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
Type
Dual channel memory architecture
Slots
2 x DDR4 DIMM
Supported Memory
11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time
Connector & Ports
HDMI
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Display Port (s)
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
D-Sub (s)
1 x D-Sub port
DVI-D (s)
1 x DVI-D port
USB (s)
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
LAN Port (s)
Realtek GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. 4 x SATA 6Gb/s connectors
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
H510M S2H
Part ID: #CAN-01235
Last Updated: 1 month ago
