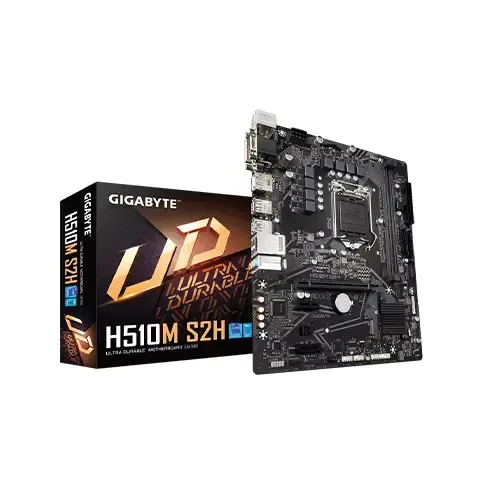

Gigabyte H510M S2H Micro ATX Motherboard

Designed for builders and enthusiasts, the Gigabyte H510M S2H 11th Gen Micro ATX Motherboard offers a robust foundation for your next PC upgrade. With its reliable performance and extensive feature set, this motherboard is perfect for users seeking a hassle-free building experience.

Key Features and Benefits

Supports 11th Gen Intel Core Processors for exceptional performance and power efficiency
Micro ATX form factor for compact builds and easy integration into small cases
4 x DDR4 DIMM slots supporting up to 64GB of memory for seamless multitasking
4 x SATA III ports for storage expansion and data transfer
High-quality audio capacitors and a dedicated audio processor for immersive sound

Proprietary Technologies and Innovations

Intel 11th Gen CPU Support

The Gigabyte H510M S2H motherboard is designed to take full advantage of Intel's 11th Gen Core processors, delivering exceptional performance, power efficiency, and advanced features for an unparalleled computing experience.

Part ID: #CAN-01568 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Nexus Computer Gigabyte H510M S2H Intel 10th & 11th Gen Micro ATX Motherboard	In Stock	9,500	3 hours ago	Buy Now
TechLand BD Gigabyte H510M S2H 11th Gen Micro ATX Motherboard	In Stock	10,000	4 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek GbE LAN chip (1 Gbit/100 Mbit)

USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Audio Realtek audio codec High Definition Audio 2/4/5.1/7.1-channel

Slots 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots

Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Chipset Intel H510 Express Chipset

Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port*, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort*, supporting a maximum resolution of 4096x2304@60 Hz

Warranty 03 Years

Dimension 24.4cm x 21.0cm

Form Factor Micro ATX Form Factor

Supported CPU LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* L3 cache varies with CPU

Supported Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors

External I/O Ports 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
