Product Description

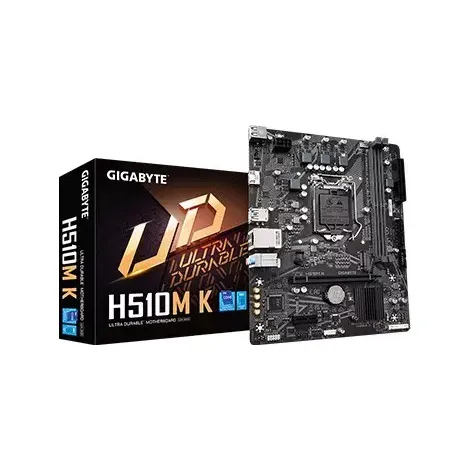

Gigabyte H510M K: Elevate Your Gaming Experience
Designed for gamers, content creators, and tech enthusiasts alike, the Gigabyte H510M K motherboard offers a robust platform for building a high-performance PC that meets the demands of modern computing. With its 11th Gen DDR4 Micro ATX design, this motherboard delivers exceptional power, speed, and reliability for a seamless gaming experience.
Key Technical Features
Key Highlights:
- 11th Gen Intel Core processor support for enhanced performance and efficiency
- DDR4 memory with speeds up to 4800 MHz for faster data transfer
- Micro ATX form factor for compact and efficient system design
- Support for USB 3.2 Gen 2 and high-speed storage options
- High-quality audio capacitors and a dedicated audio processor for immersive sound
Gigabyte Proprietary Technologies
Advanced Cooling and Power Management: The Gigabyte H510M K motherboard incorporates advanced cooling and power management technologies to ensure optimal system performance and longevity. With its robust VRM and high-quality capacitors, this motherboard provides superior power delivery and efficient heat dissipation.
Part ID: #CAN-01510
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
OS
Support for Windows 11 64-bit Support for Windows 10 64-bit
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)
USB
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Memory
11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Storage
1 x M.2 connector: Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
I/O Port
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty
3 Years
Form Factor
ATX
Supported CPU
LGA1200 package: 11th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel® Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU
Expansion Slots
1 x PCI Express x16 slot: Supporting PCIe 4.0 and running at x16 (PCIe 4.0 is only supported by 11th Generation processors.) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Speacial Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
