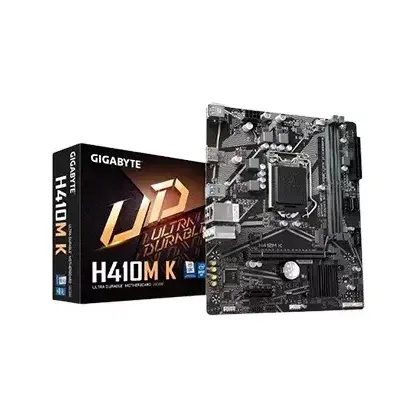

Gigabyte H410M K DDR4 Micro ATX Motherboard - Affordable Performance for All

This motherboard is perfect for users looking to build a reliable and affordable PC for everyday tasks, casual gaming, and general computing. The Gigabyte H410M K DDR4 Intel Motherboard offers a seamless experience at an unbeatable price, making it an excellent choice for upgrading or building a new PC.

Key Features and Benefits

Supports Intel 10th and 11th Gen Processors for fast and responsive performance
DDR4 Memory Support for smooth application and game performance
Multiple PCIe Slots for easy installation of graphics cards and other expansion cards
USB 3.1 Ports for faster data transfer speeds
Compact and Efficient Design with a micro-ATX form factor for space-saving builds
Solid Capacitors for better durability and long-lasting performance

Proprietary Technologies and Design

The Gigabyte H410M K DDR4 Intel Motherboard boasts a range of innovative features and technologies that enhance its performance and reliability. With a focus on delivering a seamless computing experience, this motherboard is designed to meet the needs of users who demand more from their PC.

Part ID: #CAN-01497 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Skyland BD Gigabyte H410M K (2.0) DDR4 Intel Motherboard	In Stock	9,000	4 hours ago	Buy Now
TechLand BD Gigabyte H410M K DDR4 Micro ATX Motherboard	In Stock	9,200	5 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

CPU 1. LGA1200 package: Support 10th Generation Intel Core i9 processors/ Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors 2. L3 cache varies with CPU (Please refer "CPU Support List" for more information.)

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)

USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Jack Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Color Black

Model H410M K

Memory 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Chipset Intel H470 Express Chipset

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)

Warranty 3-years

Connector Back Panel 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 5 Intel Optane Memory Ready

Controller iTE I/O Controller Chip

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

Other Features H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install

Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
