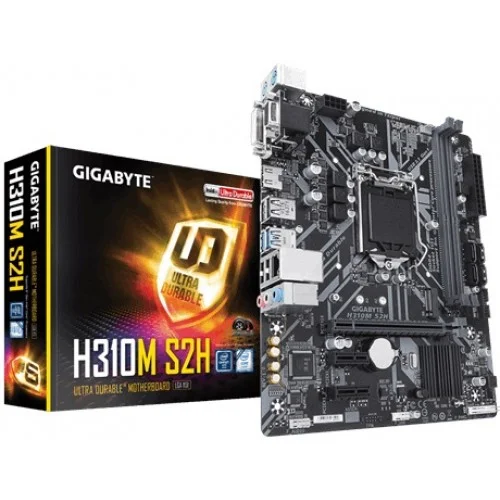

Gigabyte H310M S2H 9th Gen Micro ATX Motherboard

Status
Check Stores
2 stores
Lowest 7,500 BDT
Price Range Single price listing
Gigabyte H310M S2H 9th Gen Micro ATX Motherboard

Product Description

Upgrade Your Gaming PC with the Gigabyte H310M S2H 9th Gen Micro ATX Motherboard

Designed for enthusiasts and gamers, the Gigabyte H310M S2H 9th Gen Micro ATX Motherboard is the perfect upgrade for your gaming PC. With its advanced features and high-performance capabilities, this motherboard is built to deliver exceptional gaming experiences and take your system to the next level.

Key Features and Benefits

  • Supports 9th and 8th Gen Intel Core Processors for exceptional performance and power efficiency
  • Dual Channel Non-ECC Unbuffered DDR4 Memory for faster data transfer rates and improved system responsiveness
  • Realtek GbE LAN Chip for fast and reliable networking
  • 4 x USB 3.1 Gen 1 Ports and 6 x USB 2.0/1.1 Ports for convenient connectivity options
  • Support for DDR4 2666/2400/2133 MHz Memory Modules for improved memory performance

Advanced Technologies and Features

GIGABYTE Exclusive Technologies

The Gigabyte H310M S2H 9th Gen Micro ATX Motherboard features a range of advanced technologies and features, including:

  • Smart Fan 5 for customizable fan control and improved cooling performance
  • Anti-Sulfur Resistors Design for improved motherboard reliability and durability
  • CEC 2019 Ready for power efficiency and reduced energy consumption
  • 8-Channel HD Audio with high-quality audio capacitors for immersive audio experiences
Part ID: #CAN-02127 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Sell Tech Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
PC House Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
Check Stock 7,500 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Motherboard Basic Info

PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

Motherboard Basic Information

Supported CPU Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU
Chipset Intel H310 Express Chipset

Expansion Slots

M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

Graphics Specifications

Max Shared Memory 1 GB

Motherboard Memory Info

Slots 2 x DIMM sockets
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.

Connectivity

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2.

Motherboard Graphics Info

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.

Connector & Ports (MB)

USB (s) 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter.
Supported Storage 4 x SATA 6Gb/s connectors

Others

Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)

Warranty Information

Manufacturing Warranty 03 Years
Part ID: #CAN-02127 Last Updated: 1 month ago
