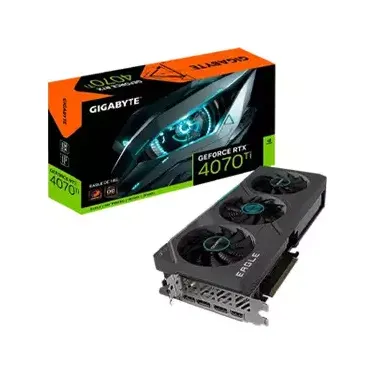

Specification Type GDDR6X Size 12GB Resolution 7‎680 x 4320 Core Clock 2625 MHz (Reference card : 2610 MHz) Memory Clock 21 Gbps BUS Type 192 bit Memory Interface PCI-E 4.0 CUDA Cores 7680 Display Port DisplayPort 1.4 x3 HDMI HDMI 2.1 x1 Connectors 16 pinx1 Recommended PSU 750W Multi Display 4 DirectX 1‎2 Ultimate OpenGL 4‎.6 Dimensions L=301 W=136 H=58 mm Others PCB Form: ATX Warranty Manufacturing Warranty 2 years GIGABYTE GeForce RTX 4070 Ti EAGLE OC 12GB GDDR6X Graphics Card The GIGABYTE GeForce RTX 4070 Ti EAGLE OC is a powerful graphics card for gaming and demanding multimedia applications. It is Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing. It has 4th Generation Tensor Cores for up to 4x performance with DLSS 3 vs. brute-force rendering also comes with a core clock speed of 2625 MHz and it features 7680 CUDA cores and 12 GB of GDDR6X memory with a clock speed of 21 Gbps and a 192-bit memory bus. The card is PCI-E 4.0 compliant and can support digital resolutions of up to 7680x4320. It also has 3 DisplayPort 1.4 outputs and 1 HDMI 2.1 output. It has 4 multi-view capabilities and measures 336mm in length, 140mm in width, and 58mm in height. It has an ATX PCB form factor and is compatible with DirectX 12 Ultimate and OpenGL 4.6. A recommended power supply of 750W is required, and the card has a single 16-pin power connector. Windforce Cooling System The GIGABYTE GeForce RTX•• 4070 Ti EAGLE OC 12G comes with WINDFORCE cooling system that features three 100mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans, Screen cooling, which together provide high-efficiency heat dissipation. Alternate spinning reduces the turbulence of adjacent fans and increases airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low-load or low-power game. The airflow is spilled by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface. RGB Fusion GIGABYTE GeForce RTX•• 4070 Ti EAGLE OC 12GB Graphics Card features legendary three-ring lighting that provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices. ..
