Product Description

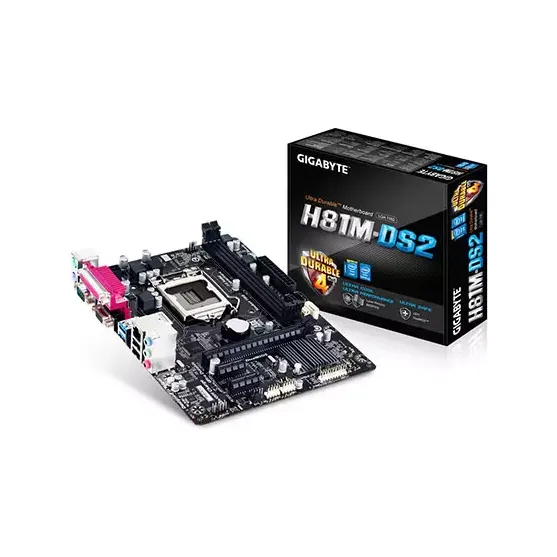

Upgrade Your Gaming Experience with the Gigabyte GA-H81M-DS2 Micro ATX Motherboard
The Gigabyte GA-H81M-DS2 Micro ATX motherboard is designed for enthusiasts who demand high-performance computing without breaking the bank. This ultra-durable motherboard is perfect for building a reliable and efficient gaming PC that can handle demanding games and applications.
Key Features and Technical SpecificationsThis motherboard boasts the following impressive features:
- Support for 4th gen Intel processors, including Intel Core i7, i5, i3, Pentium, and Celeron processors
- Dual channel DDR3 memory architecture with support for up to 16 GB of memory
- Integrated Intel HD graphics with 1 GB of shared graphics memory, supporting resolutions up to 1920x1200 Hz
- USB 3.0 ports with GIGABYTE 3x USB power for fast data transfer and charging
- Realtek GbE LAN chip for reliable network connectivity
- Audio capabilities with Realtek ALC887 codec and support for 2/4/5.1/7.1-channel audio
The Gigabyte GA-H81M-DS2 motherboard features several proprietary technologies that enhance its performance and reliability:
GIGABYTE On/Off Charge allows for quick and safe charging of USB devices, while LAN with high ESD Protection provides a secure network connection. Additionally, the motherboard features GIGABYTE UEFI DualBIOS, which ensures that your system remains stable and secure, even in the event of a BIOS failure.
Part ID: #CAN-01560
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard
|
In Stock | 8,800 | 5 hours ago | |
|
Ultra Technology
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
|
In Stock | 8,800 | 4 hours ago | |
|
Skyland BD
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
|
Check Stock | 7,400 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
USB
Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel® H81 Express Chipset
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 1 GB
Warranty
3 Years
Dimension
22.6cm x 17cm
Form Factor
Micro ATX
Supported CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
Other Features
H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control I/O Controller iTE® I/O Controller Chip
Special Features
Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Software Features
Norton® Internet Security (OEM version)
Supported Storage
2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
External I/O Ports
1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
