Product Description

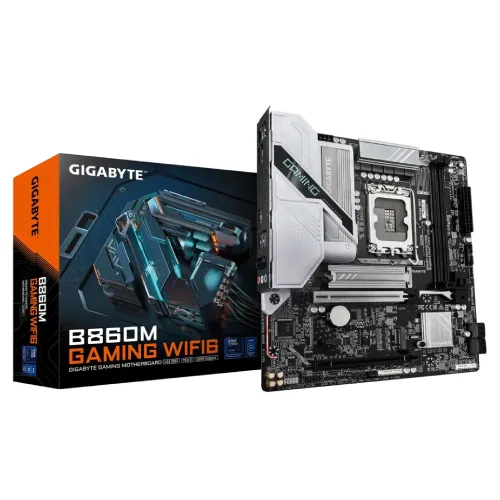

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
The Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard is a top choice for gamers and PC enthusiasts seeking a high-performance motherboard with cutting-edge features and smooth performance. Designed to support Intel Core Ultra processors via the LGA 1851 socket, this motherboard is powered by the Intel B860 Express Chipset for outstanding performance and speed.
Key Features and Benefits
- Support for Intel Core Ultra Processors (Series 2) and DDR5 memory up to 128 GB with speeds of up to 9066 MT/s (overclocked)
- Two M.2 slots, one supporting PCIe 5.0 x4 for ultra-fast storage options and another for unrivaled graphics performance
- Built-in Wi-Fi 6 and 2.5GbE LAN for seamless wireless and wired networking
- Support for HDMI 2.1 and DisplayPort 2.1 for outstanding images and graphics
- AI Perfdrive for optimum BIOS settings and PCIe EZ-Latch Plus for easy installation
Advanced Technologies and Features
VRM Thermal Armor and M.2 Thermal Guard keep temperatures under control during intensive tasks, ensuring optimal system performance and stability. Additionally, the motherboard features a range of user-friendly technologies, including Q-Flash Plus for easy BIOS updates and Smart Backup for secure data protection.
Part ID: #CAN-01063
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Netstar
Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
|
In Stock | 24,500 | 5 hours ago | |
|
Sell Tech
Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
|
In Stock | 24,500 | 5 hours ago | |
|
Skyland BD
Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
|
In Stock | 25,100 | 4 hours ago | |
|
Star Tech
Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
|
In Stock | 25,300 | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Core Ultra Processors(Series 2)
Chipset
Intel B860 Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
1 x front panel audio header 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Year Warranty
Key Features
Model
B860M GAMING WIFI6
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
2x DDR5, Max 128GB,Supports Up to 9066(O.C)
Graphics Output
1x HDMI, 1x DisplayPort
Features
2x M.2, Intel Wi-Fi6 , Bluetooth 5.3
Part ID: #CAN-01063
Last Updated: 1 month ago
