Product Description

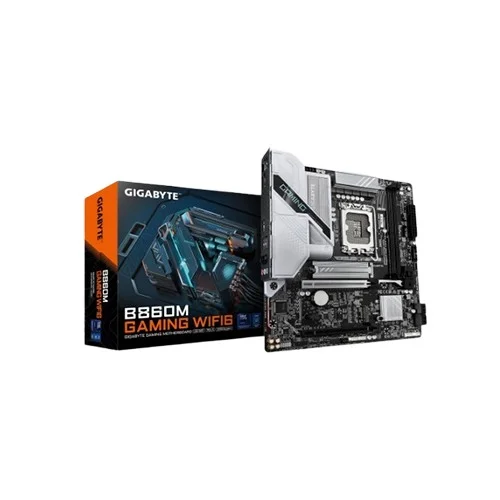

Gigabyte B860M GAMING WIFI6 Motherboard
The Gigabyte B860M GAMING WIFI6 Motherboard is a powerhouse designed for gamers and performance enthusiasts, offering cutting-edge performance, advanced connectivity, and unparalleled expandability. Whether you're building a new gaming rig or upgrading an existing system, this motherboard provides the perfect foundation for unleashing your full computing potential.
Key Features and Performance Benefits
- Unmatched Performance: Supports the latest Intel Core Ultra processors with an LGA1851 socket and Intel B860 Express Chipset for enhanced performance.
- High-Speed Memory Support: 2 x DDR5 DIMM sockets supporting up to 128GB of memory, with high-speed support up to DDR5 9066 MT/s (OC).
- Advanced Connectivity: Realtek Wi-Fi 6 RTL8851BE for high-speed wireless connectivity, Realtek 2.5GbE LAN Chip for high-speed wired connections, and USB Type-C with USB 3.2 Gen 1 support.
- Robust Graphics Support: Integrated Intel HD Graphics with support for impressive resolutions up to 4096x2160 at 60Hz via HDMI or 3840x2160 at 144Hz via DisplayPort.
- Extensive Expansion Options: 1 x PCIe 5.0 x16 slot for high-performance GPUs and 1 x PCIe 4.0 x4 slot for additional devices.
Exclusive Technologies and Features
Q-Flash & Q-Flash Plus: Easy BIOS updates without CPU or RAM, ensuring seamless system upgrades and maintenance. GIGABYTE Control Center (GCC): System tuning and customization for optimal performance and user experience. Smart Backup and Comprehensive Monitoring: Convenient backup management and real-time system monitoring for enhanced reliability and peace of mind.
Part ID: #CAN-01898
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
|
In Stock | 25,000 | 4 hours ago | |
|
Ultra Technology
GIGABYTE B860M GAMING WIFI6 Intel Motherboard
|
In Stock | 25,000 | 4 hours ago | |
|
TechLand BD
GIGABYTE B860M GAMING WIFI6 Intel B860 DDR5 Micro ATX Motherboard
|
In Stock | 25,300 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Memory
Supported Memory
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
USB (s)
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Back Panel Connectors
1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11
External Features
Expansion Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Others
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty
3 Years
Part ID: #CAN-01898
Last Updated: 1 month ago
