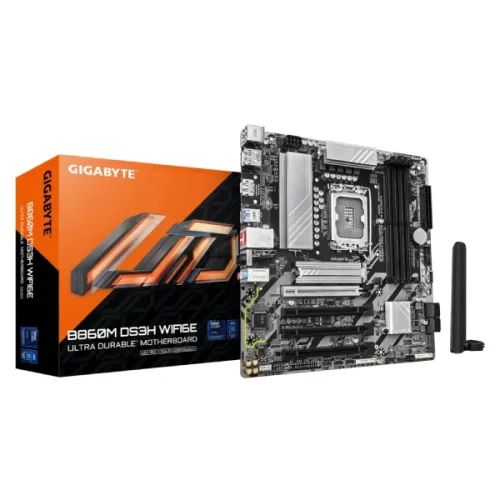

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Status
In Stock
4 stores
Lowest 23,500 BDT
Price Range 23,500 to 24,500 BDT Save 4%
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Product Description

Unlock Unmatched Performance with the Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Designed for power users and content creators, this cutting-edge motherboard is engineered to deliver exceptional performance, robust connectivity, and innovative features. With its Intel Core Ultra CPU support and high-speed DDR5 RAM, it's the perfect choice for demanding applications, gaming, and multitasking.

Key Features and Performance Highlights:

  • Supports Intel Core Ultra Processors and up to 256GB of DDR5 RAM with overclocking rates of up to 9066 MT/s
  • Intel HD Graphics with triple-display output via HDMI and dual DisplayPort connectors, supporting resolutions up to 4096x2160 at 60Hz and 3840x2160 at 144Hz
  • PCIe 5.0 M.2 slot for high-speed NVMe SSDs and a second PCIe 4.0 M.2 slot for flexible storage options
  • Realtek 2.5GbE LAN and Intel Wi-Fi 6E for fast and reliable network connectivity, including dual-band frequencies and Bluetooth 5.3
  • USB 3.2 Gen 2 and Gen 1 ports, as well as USB Type-C support for versatile connectivity options

Innovative Technologies and Features:

Powerful Performance and Intelligent Features

The Gigabyte B860M DS3H WIFI6E motherboard boasts a range of innovative technologies and features that enhance its performance and usability. With the Intel B860 Express chipset, it delivers exceptional performance and supports up to 256GB of DDR5 RAM for seamless multitasking and content creation. Additionally, its Realtek 2.5GbE LAN and Intel Wi-Fi 6E provide fast and reliable network connectivity, while its Intel HD Graphics enable triple-display output and smooth visuals.

Part ID: #CAN-01060 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Skyland BD Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard
In Stock 23,500 4 hours ago
Buy Now
Creatus Computer Gigabyte B860M DS3H WIFI6E LGA 1851 Micro-ATX Motherboard
In Stock 23,899 5 hours ago
Buy Now
Star Tech Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard
In Stock 23,900 1 week ago
Buy Now
Sell Tech Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard
In Stock 24,100 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
M.2 Socket CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 2 x DisplayPort
USB (s) Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 Year

Key Features

Model B860M DS3H WIFI6E
Supported CPU Intel Core Ultra Processors, LGA1851 socket
Supported RAM 4x DDR5, Max 256GB, Supports Up to 9066 (O.C)
Graphics Output 2x DisplayPort, 1x HDMI port
Features 2x M.2 slots, Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX211
