Product Description
Engineered by Gigabyte, this motherboard is featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **23,900 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-09776
Last Updated: 1 hour ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Chipset Manufacturer
Intel® B860 Express Chipset
Audio
Realtek® Audio CODEC High Definition Audio with 2/4/5.1/7.1 channels Configurable via audio software
BACK PANEL PORTS
1 x PS/2 keyboard/mouse 1 x HDMI, 2 x DisplayPort 1 x USB 3.2 Gen 2 Type-A (red) 2 x USB 3.2 Gen 1 3 x USB 2.0 2 x Wi-Fi antenna connectors 1 x RJ-45 LAN 3 x audio jacks
BIOS FEATURES
256 Mbit AMI UEFI BIOS Supports PnP, DMI, WfM, SM BIOS, ACPI
Bundled Software
Norton® Internet Security OEM LAN bandwidth management utility
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors (Refer to GIGABYTE's website for the latest support list.) L3 cache varies with CPU
Form Factor
Micro ATX; 24.4cm x 24.4cm
H/W Monitoring
Voltage, temperature, fan speed, water flow monitoring Fan/pump control support
I/O Controller
iTE® I/O Controller Chip
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Memory
Supports DDR5 9066(O.C) down to 5600 MT/s modules 4 x DDR5 DIMM slots (Max 256 GB) Dual channel, ECC & non-ECC un-buffered DIMMs supported Supports Extreme Memory Profile (XMP)
Onboard Graphics
Integrated Intel® HD Graphics 1 x HDMI (4096x2160@60Hz), HDMI 2.1, HDCP 2.3 2 x DisplayPort (3840x2160@144Hz), DP 2.1 Triple display support
Operating System
Supports Windows 11 64-bit & Windows 10 64-bit *Intel® NPU driver supported only on Windows 11
Storage Interface
CPU: 1 x M.2 (PCIe 5.0 x4/x2, 2280) Chipset: 1 x M.2 (PCIe 4.0 x4/x2, 2280) 4 x SATA 6Gb/s Supports RAID 0/1/5/10
Unique Features
GIGABYTE Control Center (GCC) support Q-Flash, Q-Flash Plus, Smart Backup
USB
1 x USB 3.2 Gen 1 Type-C (internal header) 1 x USB 3.2 Gen 2 Type-A (rear, red) 4 x USB 3.2 Gen 1 (2 rear, 2 internal) 3 x USB 2.0/1.1 (rear) 4 x USB 2.0/1.1 (internal)
Wireless Communication module
Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE Bluetooth 5.3 WIFI a/b/g/n/ac/ax, supports 2.4/5/6 GHz bands
Connector & ports
Internal I/O Ports
1 x 24-pin ATX, 1 x 8-pin 12V 2 x CPU/system fan headers RGB headers (3x ARGB Gen2, 1x RGB) 2 x M.2, 4 x SATA Front panel, front audio, TPM, USB headers Q-Flash Plus, Reset, CMOS jumpers
Physical Specification
Expansion Slots
1 x PCIe 5.0 x16 (graphics card/NVMe SSD) 3 x PCIe 4.0 x1
Warranty Information
Warranty
3 Years
Part ID: #CAN-09776
Last Updated: 1 hour ago

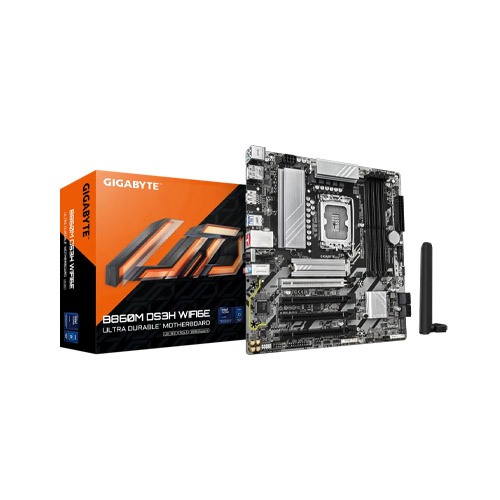

The GIGABYTE B860M DS3H WIFI6E Intel Motherboard is a powerful and future-ready micro ATX board built for 14th Gen and Intel® Core™ Ultra processors with the latest LGA1851 socket. Designed for performance users, gamers, and professionals alike, it brings together robust build quality, extensive connectivity, and modern performance technologies. This board supports ultra-fast DDR5 memory up to 9066MHz (OC), allowing you to enjoy next-gen multitasking, faster load times, and smoother computing.With integrated Intel HD Graphics support, including HDMI 2.1 and DisplayPort 2.1, it can run up to three displays simultaneously, making it ideal for productivity and entertainment. Gamers will appreciate the PCIe 5.0 x16 slot, enabling high-bandwidth graphics card installation for seamless gaming performance. It also offers two M.2 slots (PCIe 5.0 & 4.0), and 4 SATA ports to build a fast and flexible storage system.The motherboard features built-in Wi-Fi 6E and Bluetooth 5.3, ensuring lightning-fast wireless connectivity. It also includes Realtek 2.5GbE LAN for lag-free wired networking. Audio is powered by Realtek's high-definition codec, delivering immersive 7.1-channel surround sound.On the back panel, you’ll find versatile I/O options including USB 3.2 Gen2, Gen1, and legacy USB 2.0, triple audio jacks, DisplayPorts, and HDMI. A range of RGB headers and system fan connectors gives builders total customization and cooling control.Whether you're upgrading or building new, the GIGABYTE B860M DS3H WIFI6E delivers excellent reliability, connectivity, and expansion features for any modern PC build.FeaturesSupports 14th Gen and Intel® Core™ Ultra CPUs with LGA1851 socketDDR5 Memory support up to 9066MHz (OC), up to 256GBPCIe 5.0 x16 slot for high-speed GPU or NVMe SSDDual M.2 slots: PCIe 5.0 & 4.0 SSD supportBuilt-in Wi-Fi 6E and Bluetooth 5.3 connectivityRealtek 2.5GbE LAN for ultra-fast networkingTriple-display support with HDMI 2.1 & DP 2.1Multiple USB 3.2 Gen2/Gen1 & Type-C ports7.1 Channel HD Audio with Realtek Codec3 Years Official Warranty in Bangladesh..
