Status
In Stock
7 listings tracked
Lowest Deal
20,100
Best Deal
Price Range
20,100 to 22,000
Save 9%
Product Description
Engineered by Gigabyte, this motherboard is featuring a **Micro-ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **20,100 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01052
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Netstar
Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard
|
In Stock | 20,100 | 4 hours ago | |
|
Skyland BD
Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard
|
In Stock | 20,100 | 3 hours ago | |
|
Creatus Computer
Gigabyte B860M D3HP Intel Micro ATX Motherboard
|
In Stock | 20,899 | 4 hours ago | |
|
Star Tech
Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard
|
In Stock | 20,900 | 4 hours ago | |
|
Ultra Technology
Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard
|
In Stock | 21,000 | 3 hours ago | |
|
Sell Tech
Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard
|
In Stock | 21,200 | 3 hours ago | |
|
Nexus Computer
Gigabyte B860M D3HP DDR5 Micro ATX Motherboard
|
In Stock | 22,000 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU
Chipset
Intel B860 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks Actual support may vary by CPU.
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Year
Key Features
Model
B860M D3HP
Supported CPU
Intel Core Ultra Processors, LGA1851 socket
Supported RAM
4x DDR5, Max 256GB, Supports Up to 9066 (O.C)
Graphics Output
1x DisplayPort, 1x HDMI port
Features
2x M.2 slots, Realtek GbE LAN chip
Part ID: #CAN-01052
Last Updated: 2 days ago

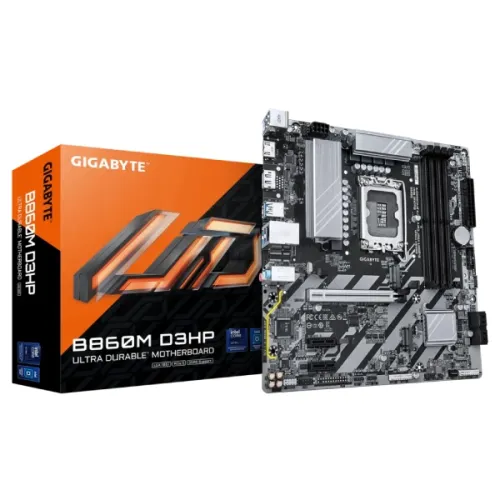

The Gigabyte B860M D3HP is a high-performance LGA1851 Micro ATX motherboard that supports Intel Core Ultra CPUs. Built with the Intel B860 Express chipset, it can support up to 256GB of DDR5 memory at rates of up to 9066 MT/s when overclocked, resulting in improved multitasking and faster data processing. The Gigabyte LGA1851 Motherboard, with dual-channel memory architecture and compatibility with ECC and non-ECC unbuffered DIMM modules, provides versatility for a variety of computing requirements. This Gigabyte B860M D3HP LGA1851 Motherboard has integrated Intel HD Graphics support, with an HDMI connector capable of 4K resolution at 60Hz and a DisplayPort that supports 3840x2160 at 144Hz, resulting in smooth and sharp images. The Gigabyte B860M D3HP LGA1851 Motherboard includes two M.2 connectors for PCIe 4.0 SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 compatibility, ensuring fast data transfer and secure storage options. The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard's expansion slots offer one PCIe 5.0 x16 slot for a dedicated GPU or NVMe SSD and two PCIe 3.0 x1 slots for extra peripherals. Realtek GbE LAN provides dependable networking, and many USB ports, including a USB Type-C port with USB 3.2 Gen 1 capability. The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard features Realtek high-definition audio and supports up to 7.1-channel sound for an immersive audio experience. The I/O panel supports HDMI, DisplayPort, USB 3.2 Gen 1, USB 2.0, and a PS/2 keyboard/mouse connector for historical compatibility.Buy Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard from Star TechIn Bangladesh, you can get original Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard From Star Tech. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard comes with a 3-year Warranty.
