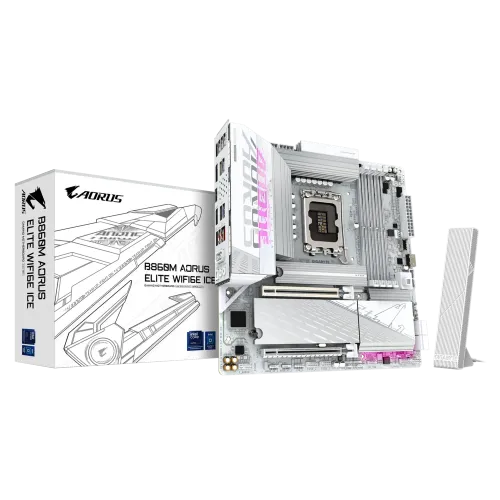

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

Status
In Stock
5 stores
Lowest 31,700 BDT
Price Range 31,700 to 34,500 BDT Save 8%
GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

Product Description

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

The GIGABYTE B860M AORUS ELITE WIFI6E ICE Micro ATX Motherboard is designed to deliver exceptional performance for gamers and content creators who demand the latest technology. With its cutting-edge features and robust connectivity options, this motherboard is the perfect choice for those seeking to unlock the full potential of their system.

Technical Specifications and Features
  • Supports up to 256 GB of DDR5 memory with speeds up to 9200 MT/s OC
  • Features USB4 Type-C, DisplayPort 2.1, and HDMI 2.1 outputs for stunning visuals
  • Equipped with Intel Wi-Fi 6E, Realtek 2.5GbE LAN, and Bluetooth 5.3 for lightning-fast networking
  • Offers three M.2 connectors for PCIe 5.0 and 4.0 SSDs, plus four SATA 6Gb/s ports with RAID support
  • Supports customizable RGB lighting and advanced cooling options for optimal system performance
Advanced Technologies and Features

The GIGABYTE B860M AORUS ELITE WIFI6E ICE Motherboard boasts a range of advanced technologies, including:

Q-Flash Plus for easy BIOS updates, ensuring you stay up-to-date with the latest features and security patches.

Smart Backup for safeguarding your important files and settings in the event of a system failure.

Windows 11 Compatibility for seamless integration with the latest operating system.

Realtek 7.1-channel HD Audio and S/PDIF Out for immersive audio experiences.

Micro ATX Form Factor measuring 24.4 cm x 24.4 cm, ideal for compact builds and small form factor systems.

Part ID: #CAN-01107 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Binary Logic Motherboard Gigabyte B860M Aorus Elite WIFI6E ICE Intel...
In Stock 33,500 5 hours ago
Buy Now
Creatus Computer Gigabyte B860M AORUS ELITE WIFI6E ICE INTEL Motherboard
In Stock 34,000 5 hours ago
Buy Now
Skyland BD GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
In Stock 34,100 4 hours ago
Buy Now
Star Tech GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
In Stock 34,300 1 week ago
Buy Now
Sell Tech GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
In Stock 34,500 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Core Ultra Processors L3 cache
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity)

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time

Connector & Ports

HDMI 2 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU: - 1 x USB4 USB Type-C port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4® USB Type-C® port (DisplayPort*) 1 x HDMI port* 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 Year Warranty

Key Features

Model B860M AORUS ELITE WIFI6E ICE
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851 Socket
Supported RAM 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output 2x HDMI, 1x DisplayPort, 1 x USB4 USB Type-C port
Features 3x M.2, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01107 Last Updated: 1 month ago
