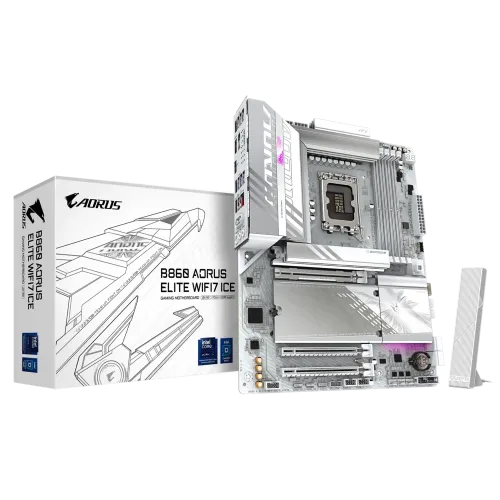

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

Status
In Stock
3 stores
Lowest 34,800 BDT
Price Range 34,800 to 36,200 BDT Save 4%
Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

Product Description

Unlock Unparalleled Performance with the Gigabyte B860 AORUS ELITE WIFI7 ICE Motherboard

This high-performance motherboard is specifically designed for tech enthusiasts, gamers, and content creators who demand the best from their PC builds. With its innovative design and cutting-edge features, the Gigabyte B860 AORUS ELITE WIFI7 ICE Motherboard delivers top-tier performance, exceptional connectivity, and unmatched versatility.

Key Features and Benefits

  • Supports Intel Core Ultra Processors with DDR5 memory at speeds of up to 9200 MT/s (OC)
  • Quad-display setup support via USB4, DisplayPort 2.1, and HDMI 2.1 for ultra-clear resolutions
  • Realtek 2.5 GbE LAN and Wi-Fi 7 for ultra-fast, low-latency networking
  • PCIe 5.0 x16 slot for graphics cards or NVMe SSDs and two PCIe 4.0 x1 slots for extra devices
  • Three M.2 connectors and four SATA 6Gb/s ports with support for RAID 0, 1, 5, and 10

Proprietary Technologies and Features

Q-Flash Plus and Customizable RGB Lighting

The Gigabyte B860 AORUS ELITE WIFI7 ICE Motherboard features Gigabyte's signature Q-Flash Plus for effortless BIOS updates, ensuring seamless performance and stability. Additionally, this motherboard boasts customizable RGB lighting with Gen2 LED headers, allowing users to personalize their PC's aesthetic and create a unique visual identity. With these cutting-edge technologies, you can take your PC build to the next level and enjoy a truly immersive experience.

Part ID: #CAN-01119 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer GIGABYTE B860 AORUS ELITE WIFI7 ICE Intel Motherboard
In Stock 35,999 5 hours ago
Buy Now
Skyland BD Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard
In Stock 36,100 4 hours ago
Buy Now
Star Tech Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard
In Stock 36,300 1 week ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Core Ultra Processors L3 cache
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)
M.2 Socket CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity)

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support) Support for up to quad-display at the same time

Connector & Ports

HDMI 2 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 Year Warranty

Key Features

Model B860 AORUS ELITE WIFI7 ICE
Supported CPU Intel Core Ultra Processors, LGA 1851 Socket
Supported RAM 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output 2x HDMI, 1x DisplayPort, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),
Features 3x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01119 Last Updated: 1 month ago
