Product Description
Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **29,800 ৳**, compared dynamically across 3 major computer shops.
Part ID: #CAN-01483
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD

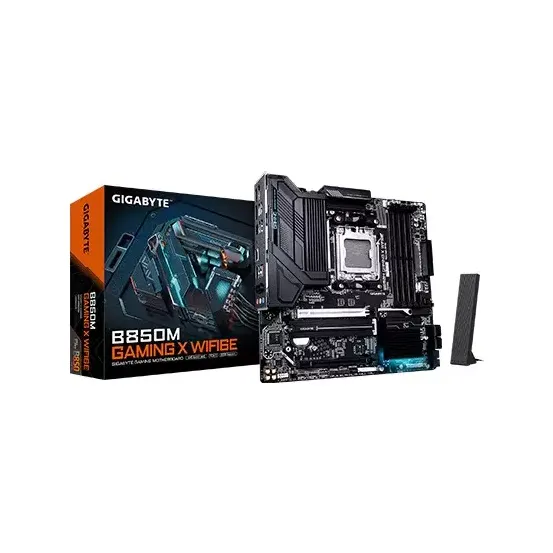

Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard
|
In Stock | 29,800 | 2 hours ago | |
|
Nexus Computer
Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard
|
In Stock | 30,000 | 2 hours ago | |
|
Ultra Technology
Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard
|
In Stock | 30,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Brand
Gigabyte
Color
Black
Model
B850M Gaming X WF6E
Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Chipset
AMD B850
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
I/O Port
Back Panel I/O Ports: 1 x HDMI port (Note) 2 x DisplayPort (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU Internal I/O Ports: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Warranty
3-Years
Bluetooth
v5.3 - Support for 11ax 160MHz wireless standard
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Supported Storage
x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated into the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Operating System Support
Support for Windows 11 64-bit Support for Windows 10 64-bit
Part ID: #CAN-01483
Last Updated: 2 days ago
Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard is a high-performance motherboard designed to support AMD Ryzen™ 9000, 8000, and 7000 series processors, making it an excellent choice for gamers and PC enthusiasts. Built on the AMD B850 chipset, this motherboard delivers superior speed, stability, and compatibility with the latest hardware. Equipped with four DDR5 DIMM slots, it supports up to 256GB of system memory with speeds up to 8200 MT/s (O.C.), ensuring seamless multitasking and high-speed performance. The PCIe 5.0 x16 slot provides high-bandwidth connectivity for modern GPUs, while the dual M.2 slots (PCIe 5.0 & 4.0 support) enhance storage options with ultra-fast NVMe SSD compatibility. For graphics, the motherboard features an integrated AMD Radeon™ Graphics processor, supporting HDMI 2.1 and DisplayPort 1.4 outputs with resolutions up to 4096x2160@60Hz and 3840x2160@144Hz, respectively. This ensures stunning visuals for gaming and professional applications. The Gigabyte B850M GAMING X WF6E includes Realtek® 2.5GbE LAN for ultra-fast wired networking and Wi-Fi 6E with Bluetooth 5.3, providing seamless wireless connectivity. The Realtek® Audio CODEC ensures high-definition audio with multi-channel support for an immersive sound experience. Connectivity options are extensive, featuring USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0 ports, along with RGB headers for customizable lighting. The motherboard also includes Smart Fan 6 technology, ensuring efficient cooling with multiple fan headers and water pump support With a Micro ATX form factor measuring 24.4cm x 24.4cm, this motherboard is perfect for compact gaming builds while offering extensive expandability. Backed by a 3-year warranty, the Gigabyte B850M GAMING X WF6E is a reliable and future-proof choice for gamers and power users alike...
