Product Description

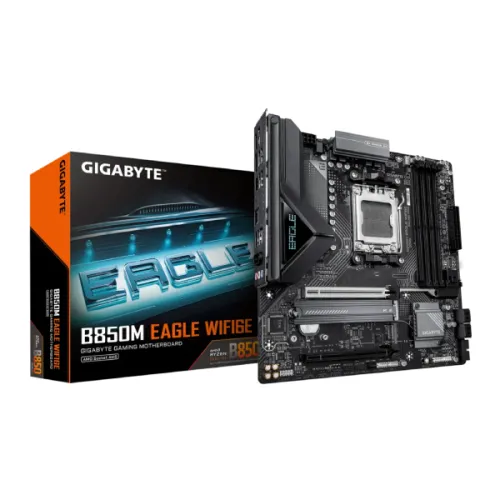

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
Next-Generation Performance for Enthusiasts and Professionals
This cutting-edge Micro ATX motherboard is designed for gamers, content creators, and professionals seeking high-end performance with future-ready connectivity. Engineered for AMD Socket AM5, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors, unlocking extreme multitasking and gaming capabilities.
Key Technical Features:
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors for Socket AM5
- Four DDR5 memory slots, supporting up to 256GB of RAM with speeds up to DDR5 8200 MHz (OC)
- Two M.2 PCIe slots, one supporting PCIe 5.0 x4 and the other PCIe 4.0 x4/x2, for blazing-fast NVMe SSDs
- Advanced display outputs, including 2x DisplayPorts and 1x HDMI 2.1 port, supporting up to triple-display output
- Onboard Intel Wi-Fi 6E (Realtek RTL8852CE) supporting 2.4GHz, 5GHz, and 6GHz bands, Bluetooth 5.3, and a Realtek 2.5GbE LAN port
Proprietary Technologies and Features:
Advanced Overclocking and Memory Optimization
This motherboard features full support for AMD EXPO and Intel XMP profiles, ensuring seamless overclocking and memory optimization across dual-channel architecture. With advanced display outputs, including 2x DisplayPorts and 1x HDMI 2.1 port, supporting up to triple-display output, perfect for multitasking or immersive visuals.
Connectivity and Expansion:
Expansion slots include a PCIe 5.0 x16 slot for high-end GPUs (when paired with Ryzen 9000/7000 CPUs) and a secondary PCIe 3.0 x4 slot. The board also features a rich I/O panel with a USB 3.2 Gen 2 Type-C port, USB 3.2 Gen 1, USB 2.0, PS/2 port, 3 audio jacks, and antenna connectors, complemented by multiple internal headers for additional USB, ARGB Gen2, RGB LED strips, fans, and water cooling systems.
High-Definition Audio and Smart Features:
High-definition audio is delivered through the Realtek Audio Codec, with support for configurable 2/4/5.1/7.1-channel sound. The GIGABYTE Control Center (GCC) software allows users to monitor, control, and optimize system performance with ease. The motherboard also features Q-Flash, Q-Flash Plus, Smart Backup, and is fully compatible with the GIGABYTE Control Center (GCC) software.
Part ID: #CAN-01072
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 26,300 | 3 hours ago | |
|
Computer Village
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 26,300 | 4 hours ago | |
|
Ultra Technology
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 26,500 | 2 days ago | |
|
Creatus Computer
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 26,500 | 4 hours ago | |
|
Star Tech
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 26,800 | 1 week ago | |
|
TechLand BD
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 26,800 | 4 hours ago | |
|
PCB Store
GIGABYTE B850M EAGLE WIFI6E AM5 DDR5 Micro ATX Motherboard
|
Check Stock | 26,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory
Up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2x DisplayPorts
USB (s)
CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x Audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850M EAGLE WIFI6E
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 256GB, 8200(OC)
Graphics Output
2x Display Port, 1 x HDMI
Features
2x M.2 Slot, Realtek 2.5GbE LAN, Intel Wi-Fi 6E RTL8852CE
