Product Description

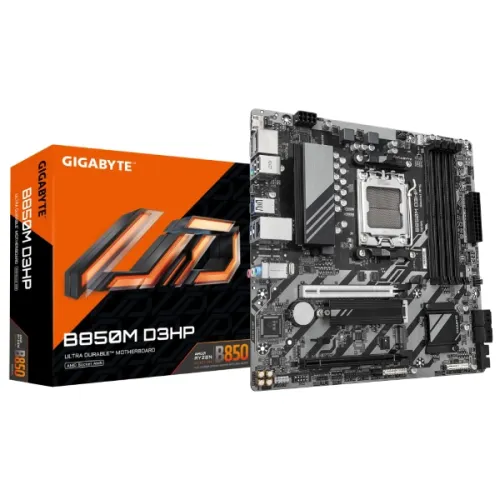

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
Unleash Power and Performance
The GIGABYTE B850M D3HP is a powerful AMD AM5 Micro ATX motherboard designed for gaming and professional applications. With its robust features and advanced technologies, it provides a stable and high-performance base for your system, whether you're a gamer, content creator, or productivity enthusiast.
Key Technical Features
- Supports AMD Ryzen 9000, 8000, and 7000 series processors for Socket AM5
- Four DDR5 DIMM slots, up to 256GB, 8200MHz memory speed
- Integrated AMD Radeon graphics with HDMI 2.1 and dual DisplayPort outputs
- Two M.2 slots for PCIe 5.0 and PCIe 4.0 SSDs
- Realtek GbE LAN for robust wired connectivity
Advanced Technologies
The GIGABYTE B850M D3HP features several advanced technologies that enhance its performance and user experience. Some of these technologies include:
- AMD EXPO and XMP for high-speed memory performance and overclocking capabilities
- Smart Fan controls for optimized cooling and noise reduction
- Q-Flash Plus for quick BIOS updates and system configuration
- RGB customization using addressable Gen2 LED strip headers
Upgrade and Expand Your System
The GIGABYTE B850M D3HP offers robust performance, comprehensive connections, and upgrade potential, making it an excellent choice for gaming, content creation, and productivity-focused systems. With its compact form factor and robust features, it's the perfect base for your next system build.
Part ID: #CAN-01051
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Gigabyte B850M D3HP DDR5 ATX Motherboard
|
In Stock | 21,000 | 4 hours ago | |
|
Skyland BD
GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 21,000 | 3 hours ago | |
|
Star Tech
GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
|
In Stock | 21,300 | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Memory
Type
DDR5
Slots
4 DIMM
Supported Memory
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
Up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2 x DisplayPorts
USB (s)
CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850M D3HP
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 256GB, 8200(OC)
Graphics Output
2x Display Port, 1 x HDMI
Features
2x M.2 Slot, Realtek GbE LAN chip
Part ID: #CAN-01051
Last Updated: 1 month ago
