Product Description
Gaming and Content Creation Unleashed

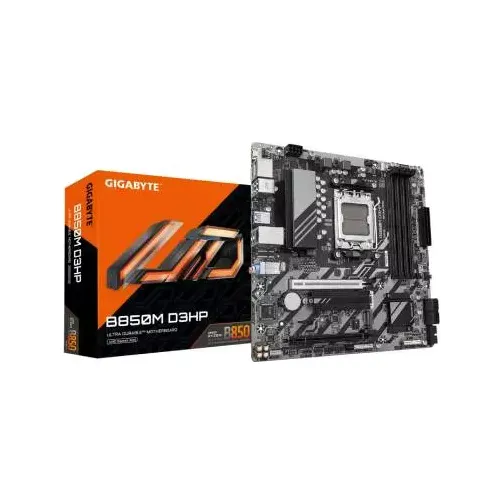

The Gigabyte B850M D3HP Micro ATX motherboard is specifically designed for gamers, content creators, and professionals seeking high-performance computing solutions. With its robust feature set and support for the latest AMD Ryzen processors, this motherboard is ideal for building a powerful gaming PC or a high-performance workstation.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 series processors, offering exceptional processing power and efficiency
- DDR5 memory support with speeds up to 8200 MT/s (OC) and a maximum capacity of 256GB across four DIMM slots
- Two M.2 slots with PCIe 5.0/4.0 support for ultra-fast data transfer speeds and NVMe SSD compatibility
- Integrated AMD Radeon Graphics with one HDMI 2.1 port (4K@60Hz) and two DisplayPorts (4K@144Hz) for high-quality visuals
- Realtek GbE LAN chip for stable and fast internet connectivity
Advanced Features and Technologies
The Gigabyte B850M D3HP motherboard incorporates several cutting-edge features, including:
Power and Cooling: This motherboard is designed with advanced cooling solutions to ensure optimal performance and reliability, even under heavy loads.
RGB Lighting: The board features RGB lighting support, allowing users to personalize their system with vibrant colors and effects.
AMD EXPO/XMP Support: With dual-channel architecture and AMD EXPO/XMP support, users can achieve optimized memory performance for demanding applications.
Robust Connectivity: The motherboard includes multiple USB ports, including USB 3.2 Gen 1 and USB Type-C, for high-speed peripheral connectivity and expansion options.
Part ID: #CAN-01485
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard
|
In Stock | 17,799 | 4 hours ago | |
|
Ultra Technology
Gigabyte B850M D3HP AMD Socket AM5 Motherboard
|
In Stock | 21,000 | 3 hours ago | |
|
Nexus Computer
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard
|
In Stock | 21,000 | 3 hours ago | |
|
PCB Store
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard
|
In Stock | 21,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB
CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 5 x USB 2.0/1.1 ports
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Chipset
AMD B850
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 1.4 version.
Warranty
3 Year
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Other Features
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Speacial Features
iTE I/O Controller Chip
External I/O Ports
1 x HDMI port 2 x DisplayPorts 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01485
Last Updated: 1 month ago
