Product Description

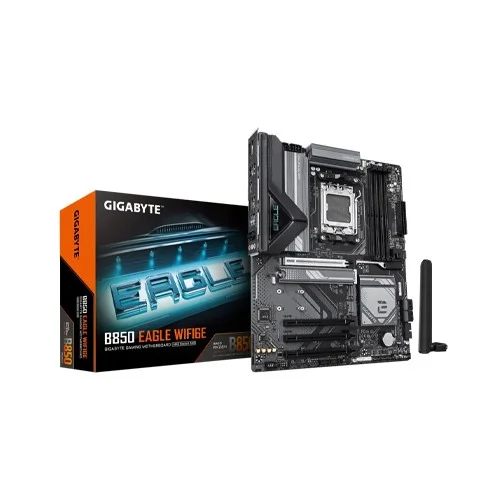

Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors and featuring a **ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **27,499 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01901
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors
Chipset
AMD B850
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
Memory
Supported Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
USB (s)
CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks
Software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty
3 Years
Part ID: #CAN-01901
Last Updated: 2 days ago
Price in BangladeshGigabyte B850 Eagle WiFi6E motherboard is designed to support AMD's latest AM5 processors, including the Ryzen 7000, 8000, and 9000 series. It offers robust performance with support for DDR5 memory modules up to 8200MHz (overclocked) and a maximum capacity of 256GB across four DIMM slots. For storage, the motherboard provides three M.2 connectors compatible with PCIe 5.0 and 4.0 SSDs, ensuring high-speed data transfer rates. In terms of connectivity, it features the latest 802.11ax Wi-Fi 6E technology, offering gigabit wireless performance on the 6GHz band for smoother streaming and gaming experiences. Additionally, the Realtek 1GbE LAN chip ensures reliable wired network connections. The motherboard also includes multiple USB ports, including USB Type-C, and comprehensive audio support with Realtek High Definition Audio CODEC.Efficient Performance for Modern ComputingThe Gigabyte B850 Eagle WiFi6E motherboard is designed to power high-end gaming and productivity setups. Built with the AMD B850 chipset, it supports AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering exceptional computing power for seamless multitasking and high-performance applications.Reliable Memory Support for MultitaskingWith four DDR5 DIMM slots, this motherboard supports memory speeds of up to 8200+ MT/s (OC), allowing for blazing-fast performance. The dual-channel architecture enhances stability, making it ideal for gamers and content creators who demand peak efficiency.High-Quality Graphics and Display OptionsEquipped with HDMI 2.1 and DisplayPort 1.4 outputs, the Gigabyte B850 Eagle WiFi6E supports 4K resolution at high refresh rates, ensuring smooth visuals and immersive experiences for gaming, streaming, and professional workflows.Fast and Versatile Storage OptionsThis motherboard features PCIe 5.0 and PCIe 4.0 M.2 slots, providing high-speed data transfer for NVMe SSDs. Additionally, four SATA 6Gb/s ports allow for extensive storage expansion, catering to high-capacity storage needs.Comprehensive Connectivity PortsEnjoy superior connectivity with USB 3.2 Gen 2, USB Type-C, and multiple high-speed USB ports. The Intel® WiFi 6E module ensures ultra-fast wireless networking, while Realtek 2.5GbE LAN offers stable wired connections for competitive gaming and data transfers.Enhanced Cooling and DurabilityDesigned for optimal heat dissipation, the Gigabyte B850 Eagle WiFi6E features multiple fan headers, an advanced cooling solution, and reinforced PCIe slots. This ensures reliability under heavy workloads and extended gaming sessions.Superior Audio ExperienceEquipped with Realtek® high-definition audio, this motherboard delivers crystal-clear sound, supporting 7.1-channel configurations for an immersive audio experience.Built for Stability and LongevityEngineered with premium components and ultra-durable design, this motherboard ensures long-lasting performance. Q-Flash Plus allows BIOS updates without a CPU installation, enhancing future compatibility.FeaturesPowerful CPU Support – Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series processors.High-Speed Memory – Supports DDR5 up to 8200+ MT/s (OC) for ultra-fast performance.Next-Gen Storage – Features PCIe 5.0 & PCIe 4.0 M.2 slots, plus 4x SATA 6Gb/s.Superior Connectivity – Includes Intel® WiFi 6E, 2.5GbE LAN, USB Type-C & USB 3.2.Enhanced Display Support – Offers HDMI 2.1 & DisplayPort 1.4 for 4K resolution.Advanced Cooling – Multiple fan headers & robust thermal solutions for stability.Durable Build – Reinforced PCIe slots & Q-Flash Plus for BIOS updates.Why Choose Gigabyte B850 Eagle WiFi6E?The Gigabyte B850 Eagle WiFi6E Price in Bangladesh makes it an excellent choice for gamers and professionals looking for high performance, superior connectivity, and advanced cooling in an ATX form factor. Order online or visit our shop today...
