Product Description
Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **26,999 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01081
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor: 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory
Up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2 x DisplayPorts
USB (s)
CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX210 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x Audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850 EAGLE WIFI6E
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 256GB, 8200(OC)
Graphics Output
1x Display Port, 1 x HDMI
Features
3x M.2 Slot, Realtek GbE LAN, Intel Wi-Fi 6E AX210
Part ID: #CAN-01081
Last Updated: 2 days ago

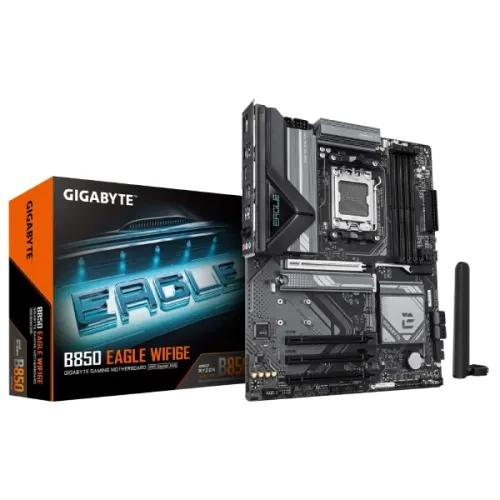

The GIGABYTE B850 EAGLE WIFI6E AMD AM5 DDR5 motherboard is a high-performance ATX motherboard designed for gamers, content creators, and PC enthusiasts. It supports AMD Ryzen 9000, 8000, and 7000 series CPUs on the AM5 socket, delivering top-tier performance with next-generation processing capability. The GIGABYTE AMD AM5 motherboard has four DDR5 DIMM slots that can support up to 256GB of RAM at speeds of up to 8200 MT/s when overclocked, providing excellent multitasking and gaming performance. Users can maximize system memory efficiency by using AMD EXPO and XMP memory modules. The GIGABYTE B850 EAGLE WIFI6E AM5 motherboard has PCIe 5.0 and PCIe 4.0 slots for graphics cards and NVMe SSDs, which ensures fast data transfer rates and expandable storage. It has three M.2 slots and four SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 compatibility for both NVMe and SATA storage. Realtek GbE LAN, Intel Wi-Fi 6E, and Bluetooth 5.3 ensure high-speed networking and flawless wireless performance. The GIGABYTE B850 EAGLE WIFI6E motherboard has several USB ports, including USB 3.2 Gen 2 and USB Type-C, for quick data transfer. Onboard graphics compatibility includes DisplayPort 1.4 and HDMI 2.1, which can produce 4K visuals at high refresh rates. The Realtek audio codec delivers high-definition 7.1-channel sound for a fully immersive experience. Additionally, the GIGABYTE DDR5 motherboard includes multiple RGB and ARGB connectors, fan and water pump ports, and Q-Flash Plus for simple BIOS updates. It also has innovative cooling solutions, voltage monitoring, and smart fan management to maintain system stability. The GIGABYTE B850 EAGLE WIFI6E motherboard, which is compatible with Windows 10 and 11, is a feature-rich motherboard that provides current PC setups with performance, expandability, and durability.Buy GIGABYTE B850 EAGLE WIFI6E AM5 Motherboard from Star TechIn Bangladesh, you can get original GIGABYTE B850 EAGLE WIFI6E AM5 Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B850 EAGLE WIFI6E AM5 Motherboard comes with 3 years of warranty.
