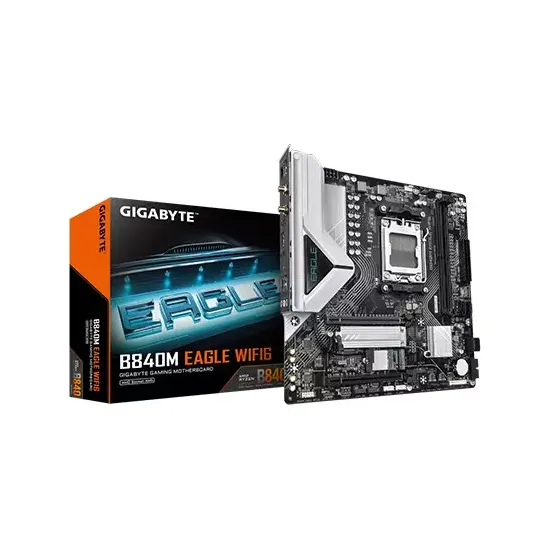

GIGABYTE B840M EAGLE WIFI6 DDR5 AMD AM5 Micro ATX Motherboard
Designed for gamers, content creators, and professionals seeking a robust and future-proof platform, the GIGABYTE B840M EAGLE WIFI6 DDR5 motherboard offers unparalleled performance, connectivity, and upgradeability for the AMD AM5 platform. Built on the AMD B840 chipset and supporting the latest Ryzen 7000, 8000, and 9000 Series processors, this Micro ATX motherboard sets the stage for exceptional computing power and efficiency.
Key Features and Benefits
- Supports AMD Ryzen 7000, 8000, and 9000 Series processors for exceptional performance and efficiency
- Dual-channel DDR5 memory support up to 7600 MT/s (OC) for faster speeds and higher bandwidth
- Two M.2 slots, including a PCIe 4.0 x4 CPU-connected slot for ultra-fast NVMe SSDs
- Realtek 2.5GbE LAN and Realtek Wi-Fi 6 with Bluetooth 5.3 for fast, stable, and low-latency networking
- Multiple fan and pump headers with advanced hardware monitoring and Smart Fan control
Exclusive Technologies and Features
Advanced Cooling and Audio Capabilities
The GIGABYTE B840M EAGLE WIFI6 DDR5 motherboard features advanced cooling and audio capabilities, including multiple fan and pump headers with advanced hardware monitoring and Smart Fan control. Realtek High Definition Audio supports up to 7.1-channel output for immersive sound. GIGABYTE's exclusive features, such as Q-Flash Plus, Smart Backup, and GIGABYTE Control Center, make system management easy and reliable.
Part ID: #CAN-01446
Last Updated: 3 weeks ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
GIGABYTE B840M EAGLE WIFI6 DDR5 AMD AM5 Micro ATX Motherboard
|
In Stock | 17,500 | 3 hours ago | |
|
Computer Village
GIGABYTE B840M EAGLE WIFI6 DDR5 AMD AM5 Micro ATX Motherboard
|
In Stock | 17,500 | 4 hours ago | |
|
TechLand BD
GIGABYTE B840M EAGLE WIFI6 DDR5 AMD AM5 Micro ATX Motherboard
|
In Stock | 17,800 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU:- 2 x USB 3.2 Gen 1 ports on the back panelCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header- 2 x USB 3.2 Gen 1 ports available through the internal USB headers- 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
Realtek Wi-Fi 6 RTL8851BE- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands- Support for 11ax 80MHz wireless standard
Audio
Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Slots
Expansion Slots:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeChipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual-channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset
AMD B840
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)
Warranty
3 Years
Bluetooth
- BLUETOOTH 5.3
Controller
I/O Controller: iTE I/O Controller Chip
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM5, support for:AMD Ryzen 9000 Series Processors/AMD Ryzen 8000 Series Processors/AMD Ryzen 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.)
Other Features
H/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Bundled Software
Norton Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Special Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on the motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
External I/O Ports
1 x PS/2 keyboard/mouse port4 x USB 2.0/1.1 ports1 x DisplayPort (Note)1 x HDMI port (Note)1 x Q-Flash Plus button2 x USB 3.2 Gen 1 ports1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks(Note) Actual support may vary by CPU.
Internal I/O Ports
1x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan/water cooling pump header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x reset jumper1 x Clear CMOS jumper
