Product Description

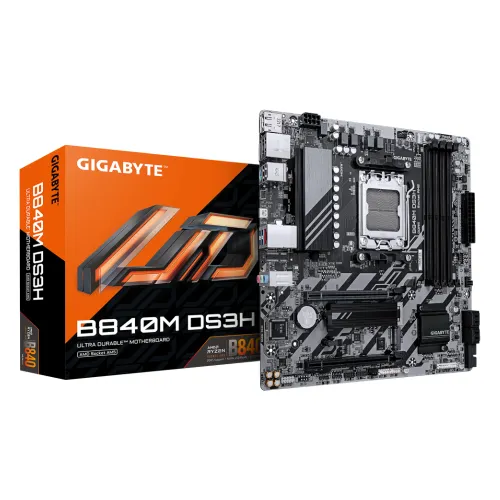

Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **18,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01028
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD
Gigabyte B840M DS3H AMD AM5 mATX Motherboard
|
In Stock | 17,800 | 2 hours ago | |
|
Star Tech
Gigabyte B840M DS3H AMD AM5 mATX Motherboard
|
In Stock | 18,400 | 3 hours ago | |
|
Creatus Computer
Gigabyte B840M DS3H Motherboard
|
In Stock | 18,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Chipset
AMD B840
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. Support for up to triple-display at the same time
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
2 x DisplayPort
USB (s)
USB CPU: - 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
Warranty Information
Manufacturing Warranty
3 Year
Key Features
Model
B840M DS3H
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 256GB, 8200(OC)
Graphics Output
2x Display Port, 1 x HDMI
Features
2x M.2 Slot, Realtek GbE LAN
Part ID: #CAN-01028
Last Updated: 2 days ago
The Gigabyte B840M DS3H AMD AM5 mATX Motherboard is a reliable and efficient platform built for mainstream PC builders who want next‑generation performance in a compact micro‑ATX form factor. Supporting AMD Ryzen AM5 processors, this Gigabyte 840 motherboard delivers DDR5 memory support, PCIe expansion, and high‑speed connectivity for smooth multitasking, gaming, and productivity. With durable components, advanced thermal solutions, and versatile expansion options, the B840M DS3H is the ideal Gigabyte motherboard for budget‑friendly yet powerful builds.DDR5 Memory SupportThe Gigabyte B840M DS3H supports DDR5 RAM, offering faster speeds and improved efficiency compared to DDR4. This ensures smoother performance for gaming, streaming, and everyday computing tasks.AMD AM5 Socket CompatibilityBuilt for AMD Ryzen AM5 processors, this motherboard provides robust computing power for modern workloads. Whether for home, office, or gaming use, the B840M DS3H delivers dependable performance.High‑Speed ConnectivityEquipped with Gigabit LAN and multiple USB ports, the Gigabyte B840M DS3H ensures fast, stable, and reliable connectivity. Perfect for online gaming, streaming, and high‑bandwidth applications, this Gigabyte WiFi Motherboard keeps you connected with minimal latency.Durable Build & Thermal DesignFeaturing solid capacitors, optimized heatsinks, and efficient cooling solutions, the B840M DS3H maintains stability under heavy workloads. Gigabyte’s Ultra Durable design ensures long‑lasting reliability.Compact mATX Form FactorThe micro‑ATX design makes the Gigabyte B840M DS3H AMD AM5 DDR5 Motherboard ideal for compact builds without sacrificing essential features. It offers multiple USB ports, PCIe slots, and audio support for versatile expansion.Buy Gigabyte B840M DS3H AMD AM5 mATX Motherboard from Star TechIn Bangladesh, you can get original Gigabyte B840M DS3H AMD AM5 mATX Motherboard From Star Tech. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Gigabyte B840M DS3H AMD AM5 mATX Motherboard comes with a 3-year Warranty.
