Product Description

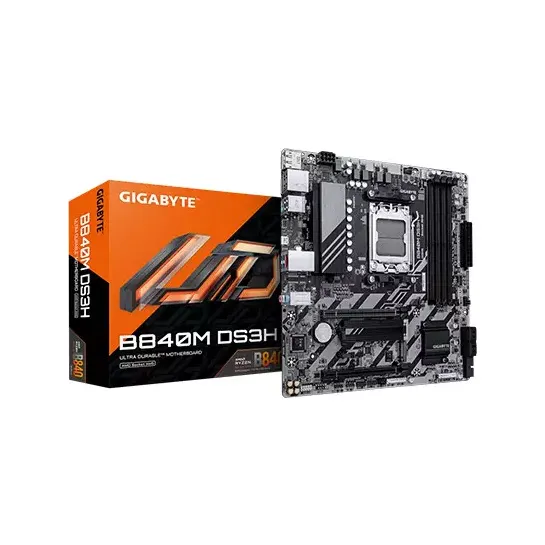

Unlock Next-Generation Performance with the GIGABYTE B840M DS3H
This Micro ATX motherboard is designed for power users and enthusiasts who demand the latest technology and future-proofing for their gaming, productivity, and everyday computing builds. With its feature-rich design and robust power management, the GIGABYTE B840M DS3H delivers exceptional performance, stability, and upgrade flexibility.
Key Features and Benefits:
- Supports AMD Ryzen 7000, 8000, and 9000 Series processors for future-ready upgrades
- Up to 256GB DDR5 memory with speeds reaching 8200 MT/s (Overclocked) for seamless multitasking and gaming performance
- Triple-display support with resolutions up to 4K via HDMI 2.1 and dual DisplayPort 1.4 outputs
- PCIe 4.0 x16 slot for modern graphics cards and an additional PCIe 3.0 x4 slot for expansion
- Realtek 2.5GbE LAN for faster online connectivity and a wide range of USB options
Advanced Technologies and Features:
Unmatched Performance and Flexibility
The GIGABYTE B840M DS3H motherboard boasts a robust power design and advanced BIOS features that ensure stable performance across demanding workloads. Its dual-channel architecture, combined with AMD EXPO and XMP support, unlocks high memory bandwidth for smoother performance in gaming and content creation applications.
Part ID: #CAN-01445
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU:- 1 x USB Type-C port, with USB 3.2 Gen 1 support on the back panel- 1 x USB 3.2 Gen 1 port on the back panelCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)- 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual-channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset
AMD B840
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.**Support for native HDMI 2.1 TMDS-compatible ports. **- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version.Support for up to triple-display at the same time(Graphics specifications may vary depending on CPU support.)
Warranty
3 Years
Controller
I/O Controller: iTE I/O Controller Chip
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM5, support for:AMD Ryzen 9000 Series Processors/AMD Ryzen 8000 Series Processors/AMD Ryzen 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.)
Other Features
H/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Bundled Software
Norton Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Special Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on the motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Supported Storage
1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
External I/O Ports
Back Panel Connectors1 x HDMI port (Note)2 x DisplayPorts (Note)1 x Q-Flash Plus button1 x PS/2 keyboard/mouse port1 x USB Type-C port, with USB 3.2 Gen 1 support2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU.
Internal I/O Ports
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan/water cooling pump header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x reset jumper1 x Clear CMOS jumper
